13m Roof Opened Steel Dry Freight Box Trailer with 2 Axles for Bulk Material And Mine Cargos,Drop Side Semi Trailer , Steel Box

Share to:

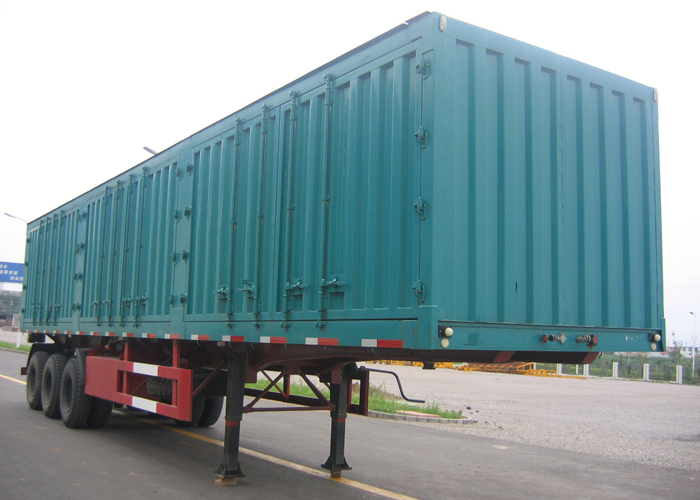

13m Roof Opened Steel Dry Freight Box Trailer
Axle No. 3 axles
Tire: Double Tires
For Bulk Cargo Delivery

  • 9302XXY-GBKD
  • GET
  • 8716
Quantity:

Product Parameters

13m Roof Opened Steel dry freight box Trailer with 2 axles for bulk material and Mine cargos,Drop Side Semi Trailer , Steel Box


Dry Freight truck Box or van trailers are the most common type for dry cargo freight. They are quite simply a metal or composite box on wheels with some doors on the back, though some offer additional access doors on the sides.



Curtain siders or Tautliners are similar to box trailers except the sides are movable curtains made of reinforced fabric coated with a waterproof coating. To put it another way, it is basically a flatbed trailer with additional aerodynamic and weather protection as well as greater load security. They generally have a restraining system of straps and buckles every foot (30cm) or so to keep the curtain tight and adverse to the elements. Also some have removable gates mounted into the trailer, to help reinforce the load and prevent bulges. The purpose of a curtain sider is to combine the security and weather resistance of a box trailer with the ease of loading of a flatbed. Curtain siders are one of the most common trailer types in Europe


13m   Roof Opened Steel dry freight box Trailer with 2 axles for bulk material and   Mine cargos9302XXY-GBKD
overall outside dimension (mm)Length13000
Width2550
Height (unload)4000
Outside   dimension of Drop Side body (mm)Length12700
Width2440
Height 2500
capacityL
GVWkg38000
vehicle   total weightkg8000
rated   payloadkg30000
Wheel   basemm9000+1800
TreadmmTread   at front
Tread at rear1840/1840
Front/Rear   Overhangmm/996
Approach/Departure   angle°/36
Rated   payload of Vehicle saddle15240
AxleBPW   14T*2
Axle Capacity kgs19760
Tyres12R20*8
Trailer   Material Carbon   Steel
Transport   Material : Bulk   or Light box cargos
Twist Locks
Insulated   Covernile
SuspensionMechinical   suspension
Leaf Spring
Remark:
BOX WALL MATERIAL:
    ROOF OPEND STEEL BOX TRAILER
    SIDE WALLS: CORRUGATED SHEET
Frame Structure
    Tail Door: Steel pad with Container lock
    WABCO Brake System, Clearance: 540m
    Floor: 3mm Checked Steel Flatbed
    Option: Floor center Moveable parts for Roil and Heavy Srcroll with fix   system
Steel Structure:

Material:High   strength low alloy steel with 350 MPa yield strength is used for welded   I-beam and 235 MPa in other fabricated parts.

Floor3mm thick checkered steel plate.
OEM Parts Configuration:

King Pin: 3.5”   /2”  exchangeable king pin, Supplier:   JOST.

Landing Gear: 2 speed   road side winding with sand shoe,Type: JOST C200T.

Suspension:Mechanical suspension with 11 / 10/   8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air   Spring Suspension

Axles: square axle   with 12/13/14/15/20 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1.   Made in China..

Tires: 11R22.5   OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 ,

Brake System: Dual   air brake system, Wabco relay emergency valve, OPTIONS: ABS.

Brake Chamber: 30   type on front axle.30/30 type on other axles,

Electrical System: Complete   24V installation with modular wiring harness. 7 pole plug placed at front in   accordance to ISO
Others:

Spare Tire    Carrier: Equipped two sets per chassis   without spare tire.

Side Guard:   Steel.

Tool Box: Equipped   one set.

Painting: Color by   customer’s requirement.

Marking: By   customer’s requirement.

Options: Oil   Tanker: 300L carbon steel.
