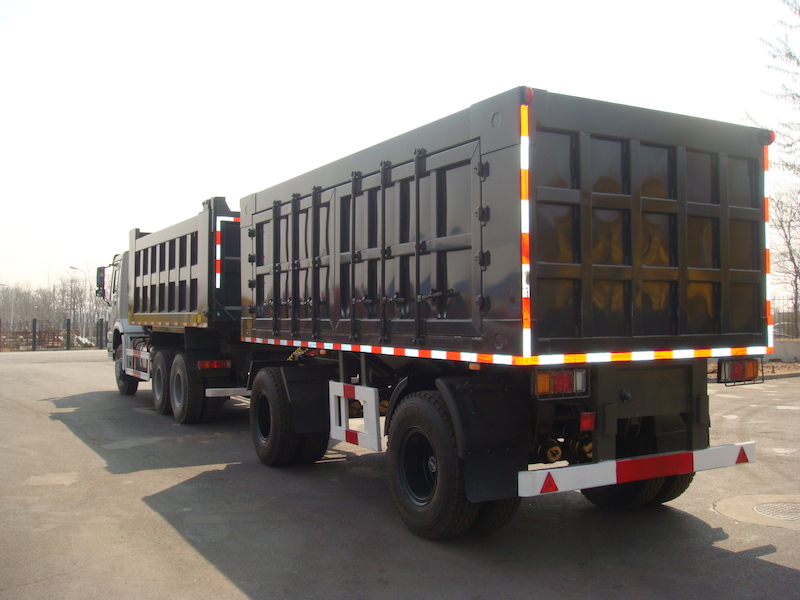

25 Feet Draw Bar Box Trailer with 2 Axles

Share to:

  • 6242XXY
Quantity:

Product Description

8m   box 25T Draw Bar box Trailer with 2 axles6242XXY
overall outside dimensionmmLength8000
Width2480
Height (unload)3200
Outside dimension of Drop Side bodyLength6135
Width2480
Height 1700
capacityL
GVWkg30000
vehicle   total weightkg6000
rated   payloadkg24000
Wheel   basemm5020+1320
TreadmmTread   at front1820
Tread at rear1820/1820
Front/Rear   Overhangmm/1976
Approach/Departure   angle°/12
Rated   payload of Draw Bar Eyes (KN)250
AxleFrontBPW   12T*1
RearBPW   12T*1
Tyres11R22.5*8
Trailer   Material Carbon   Steel
SuspensionLeaf   Spring
Leaf Spring/10/10
Remark:
Optional Front Gantry and the right protection,   ABS:  WABCO; section size groove 150 ×   75mm higher off the ground 500mm. With Wabco Brake.
Steel Structure:

Material:High   strength low alloy steel with 350 MPa yield strength is used for welded   I-beam and 235 MPa in other fabricated parts.

Main Beams: 500m   deep x 146mm wide x 8mm web welded I-section main beams,Top Flange 14m thick,   Bottom Flange 16m thick.

Floor3mm thick checkered steel plate.
OEM Parts Configuration:

Suspension:Mechanical suspension with 11 / 10/   8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air   Spring Suspension

Axles: square axle   with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in   China..

Rims: 10 Holes ISO.   Made in China. Option By the Factory..

Tires: 11R22.5   OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Triangle Brand , Made in China.   Option By the Factory..

Brake System: Dual   air brake system, Wabco relay emergency valve, OPTIONS: ABS. Option By the   Factory.

Brake Chamber: 30   type on front axle.30/30 type on other axles,

Electrical System: Complete   24V installation with modular wiring harness. 7 pole plug placed at front in   accordance to ISO, norms NO.1185.

Side Lights:   reflectors (orange);

Rear Lights: direction   indicators (orange) /brakes (red)/rear warning (white).

Turn Table: 25T   grade made in China
Others:

Spare Tire    Carrier: Equipped two sets per chassis   without spare tire.

Side Guard:   Steel.

Tool Box: Equipped   one set.

Painting: Color by   customer’s requirement.

Marking: By   customer’s requirement.

Options: Oil Tanker:   300L carbon steel.
