40 Feet Low Clearance Skeleton Semi-Trailer with 3 axles and gooseneck for organic chemical tanker container

Share to:

  • 9453TJZEJ
  • GET
  • 8716
Material:
Capacity:
Please select
Color:
Please select
Quantity:

Product Description

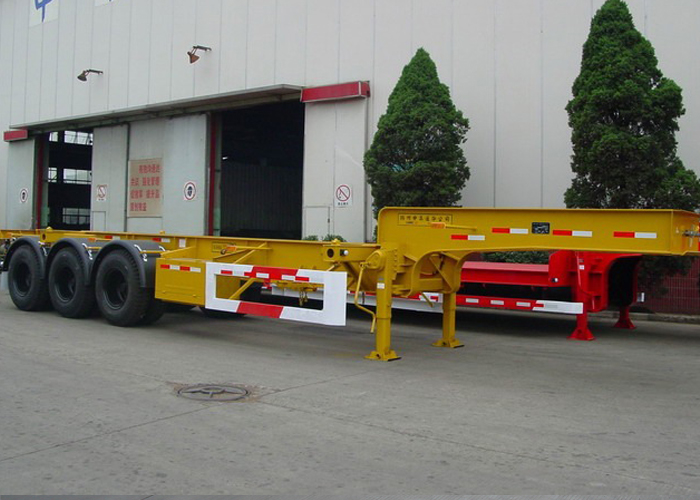

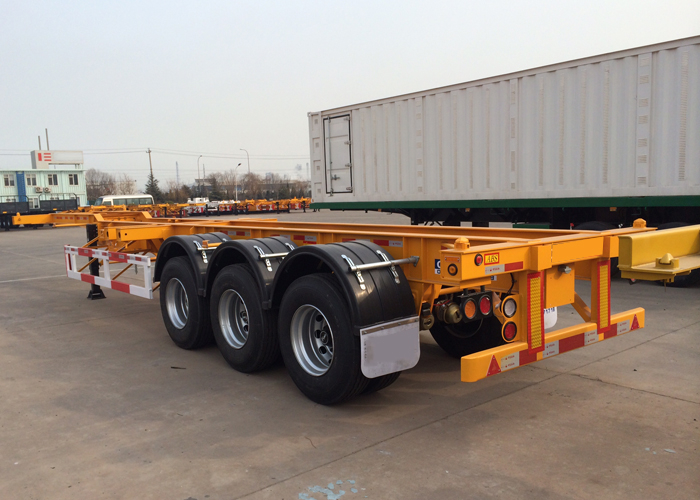

40 Feet Low Clearance Skeleton Semi-Trailer with 3 axles and gooseneck for organic chemical tanker container


Skeleton Semi-trailer is a most common type of trailers for container transportation (or Container Chassis) which have light weight but heavy capacity, without floor can easy the tank container's discharge. If choose the Gooseneck type, can lower the clearance to get a better delivery quality for the dangerious tank contianer and Vibration sensitive cargos.


40   Feet Low Clearance Skeleton Semi-Trailer with 3 axles and gooseneck for   organic chemical tanker container9453TJZEJ
Skeletal Semi-Trailer
    overall outside dimensionmm
Length12055
Width2480
Height (unload)1715
Outside   dimension of Drop Side bodymmLength
Width
Height
Tanker   capacityL
Skeletal   Semi-Trailer GVWkg51330
Skeletal   Semi-Trailer vehicle total weightkg6330
Skeletal   Semi-Trailer rated payloadkg45000
Skeletal   Semi-Trailer Wheel basemm6900+1310+1310
Trailer TreadmmTread   at front
Tread at rear/1820/1820/1820
Front/Rear   Overhangmm/840
Approach/Departure   angle°/30
Rated   payload of Vehicle saddle16000
Trailer   AxleBPW   12T*3
Trailers Axle Capacity kgs/8000/8000/8000
Tires11R22.5*12
Trailer   Material Carbon   Steel
Transport   Material : 20'   Coontainer*1
ISO Container Twist Locks12
Tanker   Insulated Covernile
Suspension   SystemLeaf   Spring
Leaf Spring Plate7/7/7
Remark:
40-foot the triaxial gooseneck container transport   semi-trailer, for a 40 ft shipping containers or tanks,
    Bearing surface height: 1300mm.ABS: Wan-an, the Bureau of the cross section   size of groove 150 × 75mm higher off the ground 500mm.
Steel Structure:

Material:High   strength low alloy steel with 350 MPa yield strength is used for welded   I-beam and 235 MPa in other fabricated parts.

Main Beams: 500m deep   x 146mm wide x 8mm web welded I-section main beams,Top Flange 14m thick,   Bottom Flange 16m thick.

OEM Parts Configuration:

King Pin: 3.5”   /2”  exchangeable king pin, Supplier:   JOST.

Container locks: 12   Sets or 8 sets.

Landing Gear: 2 speed   road side winding with sand shoe,Type: JOST C200T.

Suspension:Mechanical suspension with 11 / 10/   8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air   Spring Suspension

Axles: square axle   with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in   China..

Rims: 10 Holes ISO.   Made in China. Option By the Factory..

Tires: 11R22.5   OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Triangle Brand , Made in China.   Option By the Factory..

Brake System: Dual   air brake system, Wabco relay emergency valve, OPTIONS: ABS. Option By the   Factory.

Brake Chamber: 30   type on front axle.30/30 type on other axles,

Electrical System: Complete   24V installation with modular wiring harness. 7 pole plug placed at front in   accordance to ISO, norms NO.1185.

Side Lights:   reflectors (orange);

Rear Lights: direction   indicators (orange) /brakes (red)/rear warning (white).
Others:
    Spare Tire  Carrier: Equipped two   sets per chassis without spare tire.
    Side Guard: Steel.
    Tool Box: Equipped one set.
    Painting: Color by customer’s requirement.
    Marking: By customer’s requirement.
    Options: Oil Tanker: 300L carbon steel.
