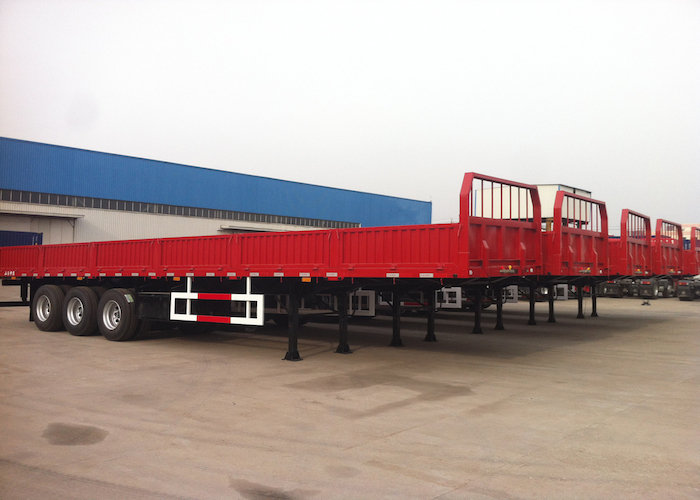

40ft Drop Side Semi Trailer with 3 Axles And Super Single Tire for General Cargo Logistic,Platform Semi Trailer

Share to:

Drop Side Trailer
Axle No. 3 axles
Rail Side Height: 600mm
Tire: super single tire

For light Cargo Delivery

  • 9403DT
  • GET
  • 8716
Quantity:

Product Parameters

40ft Drop Side Semi Trailer with  3 Axles And Super Single Tire for General Cargo Logistic,Platform Semi Trailer

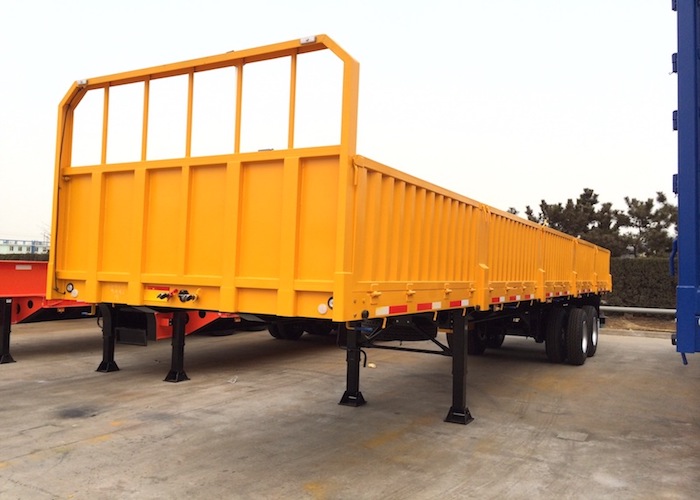

Drop-Side Trailers is kind of Drop-deck trailers (or Step-frame Trailer) with side walls and cargos fence for bulk cargos and small packed cargos.In order to let it can work more , we design the twist locks to make it can delivery contianers.


40   foot drop side semi trailer with  3   axles and super single tire for general cargo logistic9403DT
overall outside dimensionmmLength13000
Width2500
Height (unload)2720,2640
Outside   dimension of Drop Side bodymmLength12750
Width2330
Height 600
capacityL
GVWkg47500
vehicle   total weightkg7500
rated   payloadkg40000
Wheel   basemm6790+1310+1310
TreadmmTread   at front
Tread at rear2040/2040/2040
Front/Rear   Overhangmm/2090
Approach/Departure   angle°/15
Rated   payload of Vehicle saddle16000
AxleBPW   12T*3
Axle Capacity kgs8000/8000/8000
Tyres425/65R22.5*6
Trailer   Material Carbon   Steel
Transport   Material : 1*20',2*20',1*40'
Twist Locks8,12
Insulated   Covernile
SuspensionLeaf   Spring
Leaf Spring8/8/8
Remark:
Fastback Single Tyre, the fence is within the   plug-in structure, the optional plug-in structure, each side of the five   sections of the fence structure optional on each side Liuduan tailgate   structure, and the optional three rungs side anti-structure. WABCO Braker   System,Clearance: 520.
Steel Structure:

Material:High   strength low alloy steel with 350 MPa yield strength is used for welded   I-beam and 235 MPa in other fabricated parts.

Floor3mm thick checkered steel plate.
OEM Parts Configuration:

King Pin: 3.5”   /2”  exchangeable king pin, Supplier:   JOST.

Landing Gear: 2 speed   road side winding with sand shoe,Type: JOST C200T.

Suspension:Mechanical suspension with 11 / 10/   8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air   Spring Suspension

Axles: square axle   with 12/13/14/15/20 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1.   Made in China..

Tires: 11R22.5   OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 ,

Brake System: Dual   air brake system, Wabco relay emergency valve, OPTIONS: ABS.

Brake Chamber: 30   type on front axle.30/30 type on other axles,

Electrical System: Complete   24V installation with modular wiring harness. 7 pole plug placed at front in   accordance to ISO
Others:

Spare Tire    Carrier: Equipped two sets per chassis   without spare tire.

Side Guard:   Steel.

Tool Box: Equipped   one set.

Painting: Color by   customer’s requirement.

Marking: By   customer’s requirement.

Options: Oil   Tanker: 300L carbon steel.
    Options: Container locks: 12 Sets or 8 sets.
