Dump Semi Trailer
Volume: 42 cbm
Axle No. 3 Sets
Hydraulic System: Front tipper System

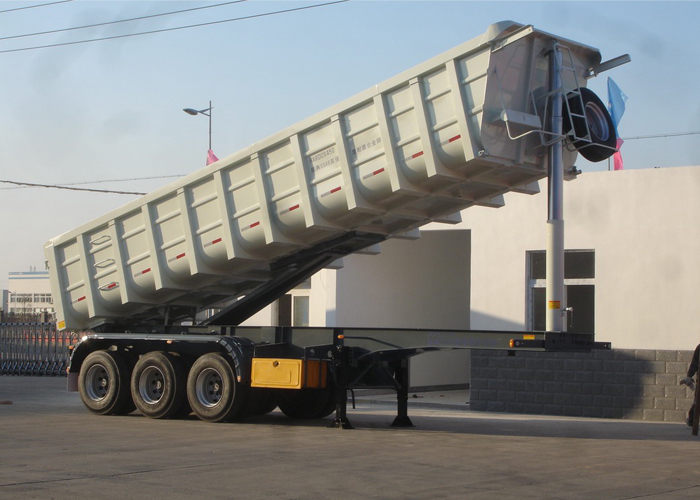

42 cbm Dump Semi Trailer with 3 BPW axles and hydraulic dumper for mine and construction material, Dump Semi Trailer,Tipper
Dump Semi-trailers ("British" Tippers) are trailers in which one end can be raised to allow the cargo (often building materials or Agricultural produce) to slide out the other end. Commonly, they are hinged at the rear and raised at the front, but side-unloading dump trailers also are used.
The key advantage of a semi end dump is a large payload. A key disadvantage is that they are very unstable when raised in the dumping position limiting their use in many applications where the dumping location is uneven or off level.
|42 cbm Dump Semi Trailer with 3 BPW axles and hydraulic dumper for mine and construction material||9603ZZX|
|overall outside dimension（mm）||Length||10670|
|Outside dimension of Drop Side body(mm)||Size||Length||9800|
|vehicle total weight（kg）||13800|
|Tread（mm）||Tread at front|
|Tread at rear||1830/1830|
|Rated payload of Vehicle saddle||16000|
|Axle Capacity kgs||/14000/14000/14000|
|Trailer Material||Carbon Steel|
|Transport Material :||Soil, Coal,Grain,Stones,Sands|
|Discharging Angle (°）||45|
|TIPPER BODY TYPE: Square Type / U Type|
Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts.
|OEM Parts Configuration:|
King Pin: 3.5” exchangeable king pin, Supplier: JOST.
Landing Gear: 2 speed road side winding with sand shoe,Type: JOST A200T.
Suspension:Mechanical suspension with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension
Axles: square axle with 15 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in China..
Tires with rims: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 Made in China. Option: Michelin,Firestone,goldyear,double coin
Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS.
Brake Chamber: 30 type on front axle.30/30 type on other axles,
Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
Spare Tire Carrier: Equipped two sets per chassis without spare tire.
Side Guard: Steel.
Tool Box: Equipped one set.
Painting: Color by customer’s requirement.
Marking: By customer’s requirement.
Options: Oil Tanker: 300L carbon steel.
Tarpaulin Cover System
