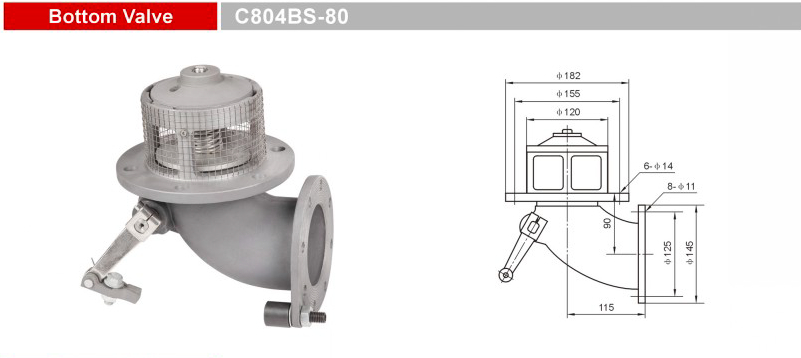

|Bottom Valves-Emergency Valves||GET||C804BS-80|
|Emergency Valves Norminal Diameter||3"|
|Emergency Valves Working Pressure||0.6MPa|
|Emergency Valves Material||Aluminum Alloy|
|Emergency Valves Open Method||MECHANICAL|
|Emergency Valves Temperature Trange||-20~+70℃|
|Description of Emergency Valves|
|Emergency shut valve is installed on the bottom of the tanker, the tope parts is tightly sealed inside the tanker. External shear groove design limits product spillage when the tanker is crashed down, it will automatically cut off itself via this groove under the situation there’s no affectation on the sealing. This will efficiently protect the over rolled tanker from leakage to ensure the safety when transportation. This product is suitable for water, diesel, gasoline and kerosene and other light fuel, etc|
|Benefit and features of Emergency Valves|
|1. Special Surface treatment|
The whole valve body is passed a special surface process to improve the anti-corrosion
2. Hydrodynamic body
Design and high lift poppet minimized pressure drop to give maximum flow rate.
3. External Shear Groove
Meets the standard requirements to limit product spillage in the event of an accident.
If need, can be installed a outernal cylinder to do the pneumatic control.
