Multi-purpose Dump Semi trailer with 2 box and different hydraulic, Dump Semi Trailer,Tipper

Share to:

Multipurpose Dump Semi Trailer
Axle No. 3 Sets
Hydraulic System: Front & Side tipper System

  • 9603ZZX-FSRT
  • GET
  • 8716
Quantity:

Product Parameters

Multipurpose Dump Semi trailer with 2 box and different hydraulic dumper,Dump Semi Trailer,Tipper


Dump Semi-trailers ("British" Tippers) are trailers in which one end can be raised to allow the cargo (often building materials or Agricultural produce) to slide out the other end. Commonly, they are hinged at the rear and raised at the front, but side-unloading dump trailers also are used.


The key advantage of a semi end dump is a large payload. A key disadvantage is that they are very unstable when raised in the dumping position limiting their use in many applications where the dumping location is uneven or off level.

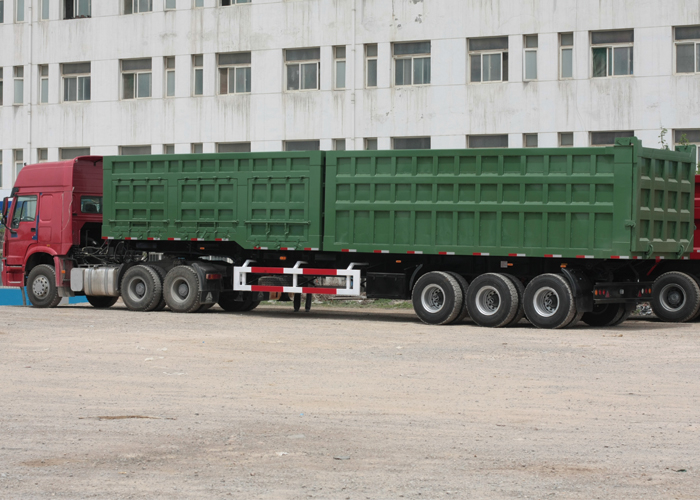

Multipurpose   Dump Semi trailer with 2 box and different hydraulic dumper9603ZZX-FSRT
This Trailer are design for the cargo distribution   with different material, like front box for sand, rear box for sands, front   box for Corn, rear box for rice, etc
overall outside dimensionmmLength14100
Width2500
Height (unload)3650
Front tipper body(mm)SizeLength6500
Width2300
Height 1820
thicknessFloor 8mm
Side wall6mm
hydraulic SystemEquiped under the box for side dump
Rear tipper body(mm)SizeLength7500
Width2300
Height 2000
thicknessFloor 8mm
Side wall6mm
hydraulic SystemEquiped at the front of the box for head dump   Tail Discharge
Discharging Angle (°)45
GVWkg83800
vehicle   total weightkg14200
rated   payloadkg60000
Wheel   basemm8200+1310+1310
TreadmmTread   at front
Tread at rear1830/1830
Front/Rear   Overhangmm/2090
Approach/Departure   angle°/14
Rated   payload of Vehicle saddle16000
Axle15T*3
Axle   Capacity kgs/14000/14000/14000
Tyres12R22.5*12
Trailer   Material Carbon   Steel
Transport   Material : Soil,   Coal,Grain,Stones,Sands
Insulated   Covernile
SuspensionLeaf   Spring
Leaf   Spring/10/10/10
TIPPER BODY TYPE: Square Type / U Type
Steel Structure:

Material:High   strength low alloy steel with 350 MPa yield strength is used for welded   I-beam and 235 MPa in other fabricated parts.
OEM Parts Configuration:

King Pin: 3.5”   exchangeable king pin, Supplier:   JOST.

Landing Gear: 2 speed   road side winding with sand shoe,Type: JOST A200T.

Suspension:Mechanical suspension with 11 / 10/   8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air   Spring Suspension

Axles: square axle   with 15 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in   China..

Tires with rims:   11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 Made in China. Option:   Michelin,Firestone,goldyear,double coin

Brake System: Dual   air brake system, Wabco relay emergency valve, OPTIONS: ABS.

Brake Chamber: 30   type on front axle.30/30 type on other axles,

Electrical System: Complete   24V installation with modular wiring harness. 7 pole plug placed at front in   accordance to ISO, norms NO.1185.
Others:
    Spare Tire  Carrier: Equipped two   sets per chassis without spare tire.
    Side Guard: Steel.
    Tool Box: Equipped one set.
    Painting: Color by customer’s requirement.
    Marking: By customer’s requirement.
    Options: Oil Tanker: 300L carbon steel.
                    Tarpaulin Cover   System
