30 T 40ft FlatBed Semi Trailer For ISO Container , Flatbed Car Trailer 2 Axles

Share to:

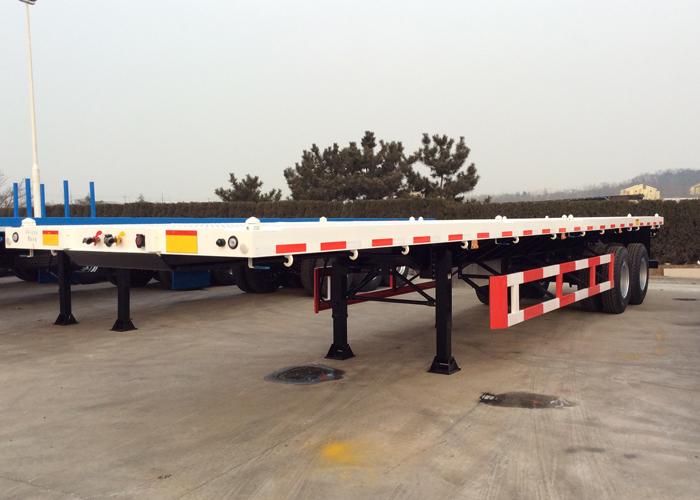

30 T 40 Feet FlatBed Semi Trailer For ISO Container , Flatbed Car Trailer 2 Axles

  • 9302TJZP20F
  • GET
  • 8716
Size:
Please select
Capacity:
Please select
Color:
Quantity:

Product Parameters


30 T 40 Feet FlatBed Semi Trailer For  ISO Container , Flatbed Car Trailer 2 Axles

Flatbed Semi-trailer is a most common type of Drop-deck trailers (or Step-frame Trailer) which have a floor that drops down a level once clear of the tractor unit; It have no front axles and coupling with towing vehicle by fifth wheel, this can make semi-trailers have a long continuous cargo area for longer objects (logs, pipe, beams, railway track, containers) than full trailers.


30 T 40 Feet FlatBed Semi Trailer For  ISO Container , Flatbed Car Trailer 2 Axles9302TJZP
Container Flat Bed Semi-Trailer
    Overall Outside Dimensionmm
Length12390
Width2480
Height(Unload)1565,1515
Flat   Bed Semi-Trailer GVWkg34990
Flat   Bed Semi-Trailer Vehicle Total WeightKg7449
Flat   Bed Semi-Trailer Rated PayloadKg30500
Flat   Bed Semi-Trailer Wheel basemm8200+1310
TreadmmTread   at front
Tread at rear1830
Front/Rear   OverHangmm/2300,2030
Approach/Departure   angle°/17,19
Rated   payload of Vehicle saddle17070
Leaf   Spring suspensionBPW   13T*2
Tires11R22.5*8
Contaner   twist locks8   or 12
Options: Capacity 30T - 45T
Steel Structure:

Material:High   strength low alloy steel with 350 MPa yield strength is used for welded   I-beam and 235 MPa in other fabricated parts.

Main Beams: 500m   deep x 146mm wide x 8mm web welded I-section main beams,Top Flange 14m thick,   Bottom Flange 16m thick.

Floor3mm thick checkered steel plate.
OEM Parts Configuration:

King Pin: 3.5”   /2”  exchangeable king pin, Supplier:   JOST.

Container locks: 12   Sets or 8 sets.

Landing Gear: 2   speed road side winding with sand shoe,Type: JOST C200T.

Suspension:Mechanical suspension with 11 / 10/   8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air   Spring Suspension

Axles: square axle   with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in   China..

Rims: 10 Holes ISO.   Made in China. Option By the Factory..

Tires: 11R22.5   OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Triangle Brand , Made in China.   Option By the Factory..

Brake System: Dual   air brake system, Wabco relay emergency valve, OPTIONS: ABS. Option By the   Factory.

Brake Chamber: 30   type on front axle.30/30 type on other axles,

Electrical System: Complete   24V installation with modular wiring harness. 7 pole plug placed at front in   accordance to ISO, norms NO.1185.

Side Lights:   reflectors (orange);

Rear Lights: direction   indicators (orange) /brakes (red)/rear warning (white).
Others:

Spare Tire    Carrier: Equipped two sets per chassis   without spare tire.

Side Guard:   Steel.

Tool Box: Equipped   one set.

Painting: Color by   customer’s requirement.

Marking: By   customer’s requirement.

Options: Oil Tanker:   300L carbon steel.
