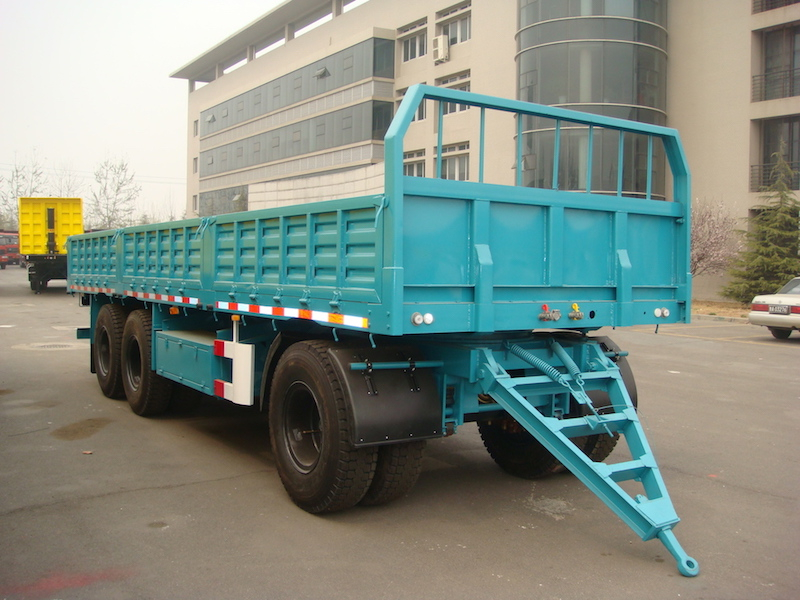

30 Feet 40T Draw Bar Drop Side Trailer with 3 Axles

Model:
6443LX

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

9m 40T Draw Bar Rail Side Trailer with 3 axles			6443LX
overall outside dimension（mm）		Length	8636
		Width	2480
		Height (unload)	1585
Outside dimension of Drop Side body		Length	8535
		Width	2480
		Height	600
capacity（L）
GVW（kg）			50000
vehicle total weight（kg）			5600
rated payload（kg）			44400
Wheel base（mm）			5095+1310+1310
Tread（mm）	Tread at front		1820
	Tread at rear		1820/1820
Front/Rear Overhang（mm）			/1976
Approach/Departure angle（°）			/12
Rated payload of Draw Bar Eyes (KN)			250
Axle		Front	BPW 12T*1
		Rear	BPW 12T*2
Tyres			11R22.5*12
Trailer Material			Carbon Steel
Transport Material :			1*20
Twist Locks			4
Suspension			Leaf Spring
Leaf Spring			/10/10/10
Remark:
Optional Front Gantry and the right protection, ABS: WABCO; section size groove 150 × 75mm higher off the ground 500mm. With Wabco Brake.
Steel Structure: Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts. Main Beams: 500m deep x 146mm wide x 8mm web welded I-section main beams,Top Flange 14m thick, Bottom Flange 16m thick. Floor：3mm thick checkered steel plate.
OEM Parts Configuration: Suspension:Mechanical suspension with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension Axles: square axle with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in China.. Rims: 10 Holes ISO. Made in China. Option By the Factory.. Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Triangle Brand , Made in China. Option By the Factory.. Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS. Option By the Factory. Brake Chamber: 30 type on front axle.30/30 type on other axles, Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185. Side Lights: reflectors (orange); Rear Lights: direction indicators (orange) /brakes (red)/rear warning (white). Turn Table: 25T grade made in China
Others: Spare Tire Carrier: Equipped two sets per chassis without spare tire. Side Guard: Steel. Tool Box: Equipped one set. Painting: Color by customer’s requirement. Marking: By customer’s requirement. Options: Oil Tanker: 300L carbon steel.
