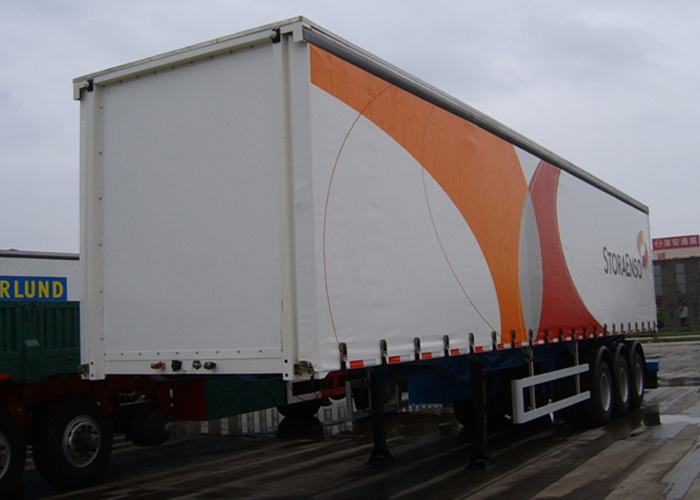

45ft Drop Side Curtain Trailer with 3 Axles for Bulk Cargos And Case Packed Cargos,Drop Side Semi Trailer

Share to:
sharethis sharing button
40ft Drop Curtain Side Trailer
Axle No. 3 axles
Tire: Double Tires
For Bulk Cargo Delivery
  • 9323XXY-CL

  • GET

  • 8716

Availability:
Quantity:

Product Parameters

45ft Drop Side curtain Trailer with 3 axles for bulk cargos and case packed cargos,Drop Side Semi Trailer


Dry Freight truck Box or van trailers are the most common type for dry cargo freight. They are quite simply a metal or composite box on wheels with some doors on the back, though some offer additional access doors on the sides.



Curtain siders or Tautliners are similar to box trailers except the sides are movable curtains made of reinforced fabric coated with a waterproof coating. To put it another way, it is basically a flatbed trailer with additional aerodynamic and weather protection as well as greater load security. They generally have a restraining system of straps and buckles every foot (30cm) or so to keep the curtain tight and adverse to the elements. Also some have removable gates mounted into the trailer, to help reinforce the load and prevent bulges. The purpose of a curtain sider is to combine the security and weather resistance of a box trailer with the ease of loading of a flatbed. Curtain siders are one of the most common trailer types in Europe



45ft   Drop Side curtain Trailer with 3 axles for bulk cargos and case packed cargos9323XXY-CL
overall outside dimension (mm)Length13750
Width2550
Height (unload)3995
Outside   dimension of Drop Side body (mm)Length13620
Width2470
Height 2540
capacityL
GVWkg40000
vehicle   total weightkg7500
rated   payloadkg32500
Wheel   basemm6820+1310+1310
TreadmmTread   at front
Tread at rear1830/1830/1830
Front/Rear   Overhangmm/2560
Approach/Departure   angle°/12
Rated   payload of Vehicle saddle8000
AxleBPW   12T*3
Axle Capacity kgs/8000/8000/8000
Tyres11R22.5*12
Trailer   Material Carbon   Steel
Transport   Material : Bulk   or Light box cargos
Twist Locks
Insulated   Covernile
SuspensionLeaf   Spring
Leaf Spring/8/8/8
Remark:
CURTAIN MATERIAL:
    Roof, Curtain 630 g/㎡, FIXED
    Side curtainer, 900 g/㎡,FIXED
    High-strength composite door with container locks
Frame Structure
    Inside frame: Steel Pillars with Aluminum Cross Beam
    Roof: Plywood Pad closed type,
    Options: Curtain open type; Steel Pad Closed type
    Tail Door: Plywood pad with container locks
    Option: Steel pad with Container lock
    WABCO Brake System, Clearance: 540m
    Floor: 3mm Checked Steel Flatbed
    Option: Floor center Moveable parts for Roil and Heavy Srcroll with fix   system
Steel Structure:

Material:High   strength low alloy steel with 350 MPa yield strength is used for welded   I-beam and 235 MPa in other fabricated parts.

Floor3mm thick checkered steel plate.
OEM Parts Configuration:

King Pin: 3.5”   /2”  exchangeable king pin, Supplier:   JOST.

Landing Gear: 2 speed   road side winding with sand shoe,Type: JOST C200T.

Suspension:Mechanical suspension with 11 / 10/   8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air   Spring Suspension

Axles: square axle   with 12/13/14/15/20 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1.   Made in China..

Tires: 11R22.5   OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 ,

Brake System: Dual   air brake system, Wabco relay emergency valve, OPTIONS: ABS.

Brake Chamber: 30   type on front axle.30/30 type on other axles,

Electrical System: Complete   24V installation with modular wiring harness. 7 pole plug placed at front in   accordance to ISO
Others:

Spare Tire    Carrier: Equipped two sets per chassis   without spare tire.

Side Guard:   Steel.

Tool Box: Equipped   one set.

Painting: Color by   customer’s requirement.

Marking: By   customer’s requirement.

Options: Oil   Tanker: 300L carbon steel.
