Main Parameters
Installation：	Clip with sheet metal.
Frame color：	Aluminum alloy natural color,Grey,Black, RAL color (Qty >100 pcs)
Glass for viewing window	Double Pane hollow tempered glass
Flyscreen	RAL9001 ASA frame with black gauze.
Wall thickness：	30~90mm.
Panel：	Laminated aluminum sheet with powder coated and insulation material.
Lock：	2/3-point locking system made in Europe，M1 tested.
Others：	ABS inner shell with abat vent wastebin and solid handle.
Main functions：
(1) Main door and screen door installed separately (2) Glass : Double Hollow Tempered Glass fixed Windows for Safari Campers. (3) Door Lock: safety certification two-point lock. Upgradeable customized central lock, password lock, face recognition function (4) Right-hinged or left-hinged doors for choosing (5) all the size can customize to fit for your Special Expedition truck Camper
All the size can customize

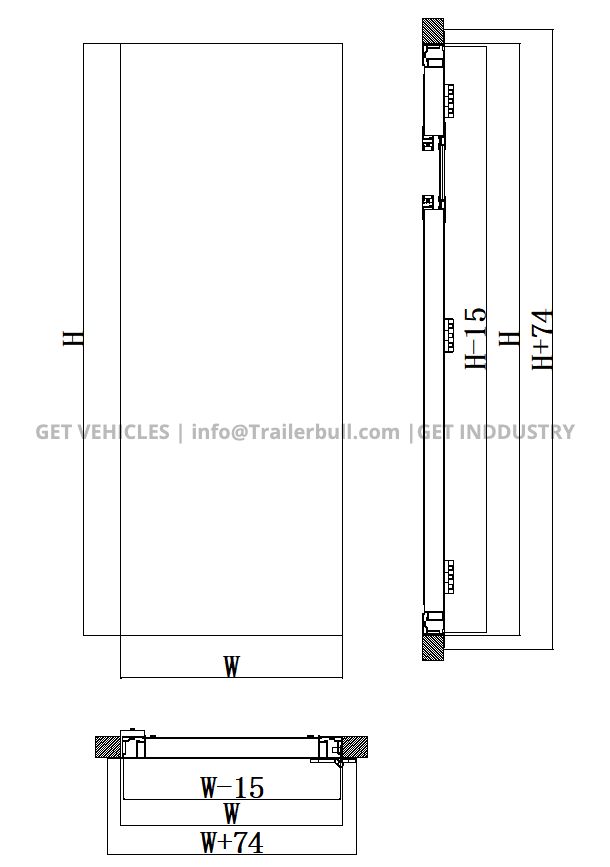

Wall Hole Fitting diagram
More Details

FAQ:

what Material of the Windows ?

The frame is Aluminum can coated with white, black and grey or the aluminum metal color for your paint with your truck. The Glass is double Panes Tempered Real Glass with E mark and DOT .

Can it work in the high Altitude Space ?

Yes, This window is designed for our Expedition Truck Motorhomes, it is vacuumed between the panes of the Glass, so it can used at any altitudes you want , keep you safe and have enough sunshine , warm and best views are still our pursue in design.

Can its size customize for special vehicles ?

yes, as it is all made by us , so all the size which height and width more than 300mm can customize . But for this kind of windows, 500~800 height is the most popular.

What color can choose ?

We have white , black , grey and no coating for standard choice, if your quantity more than 50 pcs, we can coated with your Colore from CAL color cards.

what kind of wall can install this kind of windows

Beacuse of the real glass, this window is heavier than the Acrylic caravan windows, so you must have a strong wall structure , the best is with embedded frame inside . The thickness can fit the wall from 30~85mm , the best wall thickness is 50~80mm.
