Engine

Make:SINOTRUK

Engine model: WD615.47, Euro II emission standard

4 stroke direct injection diesel engine

6 cylinder in-line with water cooling, turbo-charging & intercooling

Maximum output: 371hp(273Kw)at 2200 rpm according to DIN

Maximum torque: 1470Nm at 1100~1600 rpm

Bore: 126mm;  Stroke: 130mm; Displacement: 9.726L;  Compression ratio:17:1

Specific fuel consumption: 195g/kWh;  Engine oil filling quantity: 24L

Cooling system filling quantity (long-term filling): 40L

Thermostat opening temperature: 80^oC

Twin cylinder air compressor                  Rigid fan

Fuel Tank: 400L

Option: Thermostat with 71^oC opening begin  Visco fan

Clutch

Single-   plate dry coil-spring clutch, diameter 420mm, hydraulically operating with   air assistance

Transmission

Transmission,   model HW19710, synchromesh, 10 forward and 2 reverse

Ratio: 14.28   10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1.00 13.91® 3.18®

MAX   TORTUE: 1900NM

Propeller   Shaft

Double   universal joint propeller shaft with gear-shaped coupling flange

Front Axle

HF9

Rear Axles

HC16 Pressed axle   housing, central single reduction with planetary wheel reduction (hub   reduction)  and differential locks   between wheels and axles

Ratio: 4.8

Chassis

Frame:   U-profile parallel ladder with section of 300×80×8 mm and reinforced   subframe, riveted cross members

Front   suspension: 9 semi-elliptic leaf springs with hydraulic telescopic   double-action shock absorbers and stabilizer

Rear   suspension: 12 semi-elliptic leaf springs with bogie spring and stabilizer

Fuel tank: with   one 400 L fuel tank with locking fuel cap

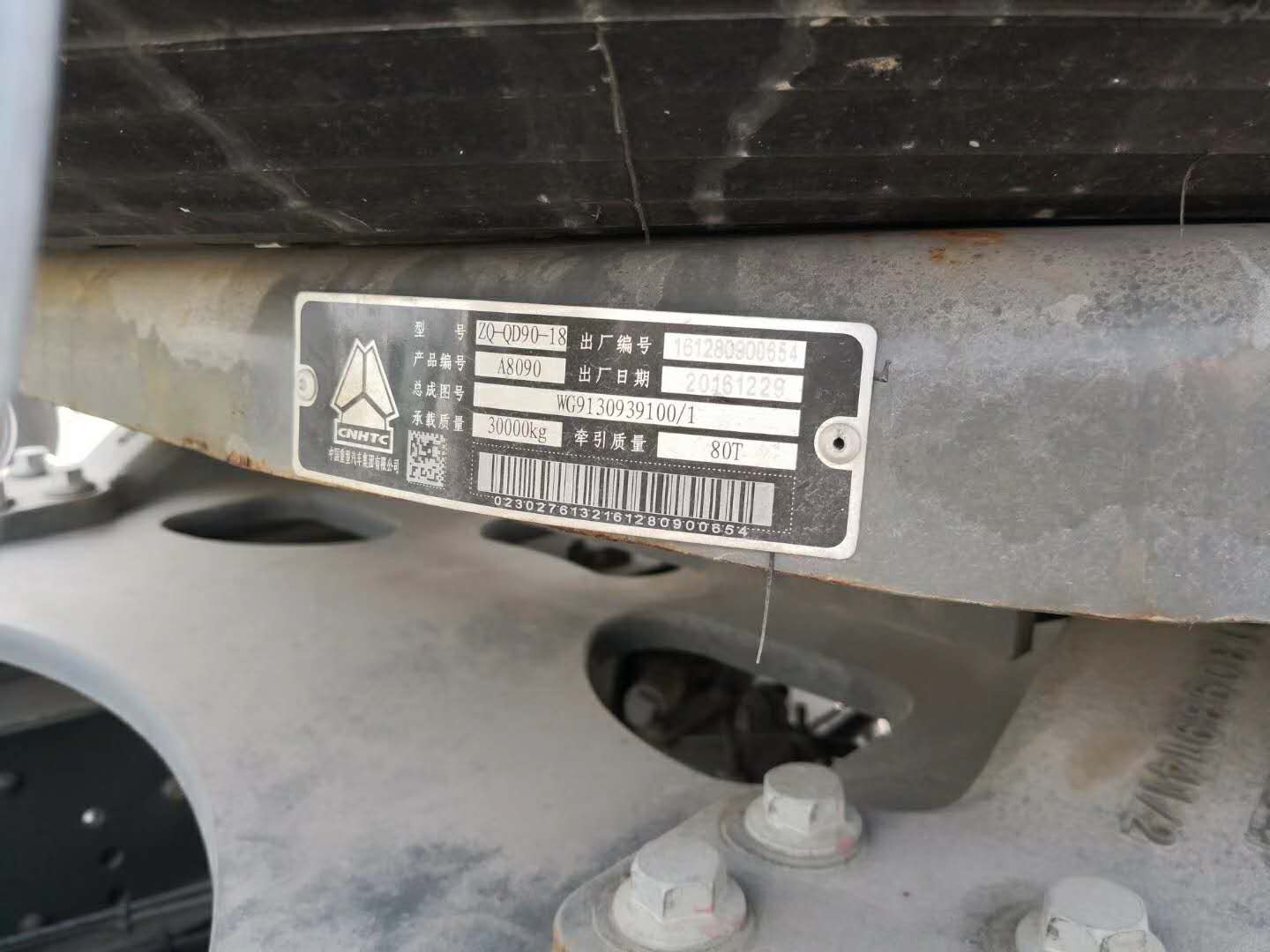

Fifth wheel   size: 3.5 inch  Option:2 inch

Steering

ZF8098,   hydraulic steering with power assistance

Ratio: 22.2-26.2:1

Brakes

Service   brake: dual circuit compressed air brake

Parking   Brake: spring energy, compressed air operating on rear wheels

Auxiliary   brake: engine exhaust brake

Option: ABS

Wheel &   Types

Rims: 9.0X22.5,10   hole-steel

Types: 12.00R22.5   Tubeless

Driver’s   cab

Long cab,   all steel forward control, 55^o hydraulic tilting to the front,   2-arm windscreen wiper system with 3 speeds, laminate windscreen, with   casted-in radio aerial, adjustable driver’s seat and rigid adjustable   co-driver’s seat, heating & ventilation system, with stereo   radio/cassette recorder, sun visor, single berth with 4-point support full   floating suspension + shock absorbers with transverse stabilizer, safety   belt, air conditioner, adjustable steering wheel, adjustable roof flap.

Electrics

Operating   voltage:24V, negative grounded;    Starter: 24V, 5.4KW

Alternator:   3-phrase, 28V, 1540W;  Batteries: 2×12,   165Ah

Cigar-lighter,   horn, headlamp, fog light, brake lights, indicators and reverse lamp

Dimensions   in mm

Wheel base

Front wheel   track

Rear wheel   track

Front   overhang

Rear   overhang

Approach   angle(^o)

Departure   angle(^o)

Overall   Dimension

3225+1350

2022

1830

1500

725

16

70

6800×2496×2958(3718   with air spoiler)

Weight in   kg

Dead weight

Rated   loading capacity at fifth wheel

Gross   vehicle weight

Gross   combination weight

Front axle   loading capacity

Rear axle   loading capacity

9180

22690

32000

60000

6500

13000×2

Performance

Maximum   driving speed(km/h)

Maximum   gradeablility (%)

Minimum ground   clearance(mm)

Minimum   turning circle(m)

Fuel   consumption(L/100km)

98

30

314

18.5

39
