9604TJZP-B
GET,CIMC
| Availability: | |
|---|---|
Product Parameters

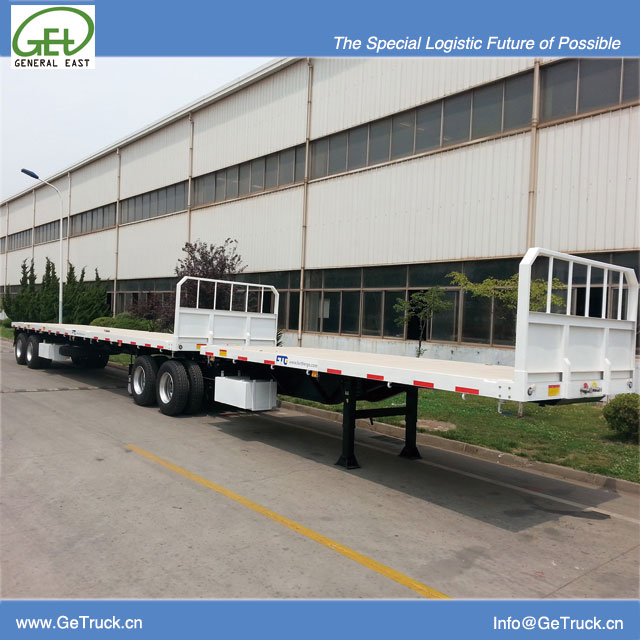

| B DOUBLE Flat Bed Semi Trailer | 9604TJZP-B | |||
| Overall dimension of the Train (mm) | Length | 19796 | ||
| Width | 2480 | |||
| Height (unload) | 1407 | |||
| Front Flat Bed Semi-Trailer MODEL: 9242TJZP-B | Overall Dimension (mm) | Length | 9748 | |
| Width | 2480 | |||
| Dimension of the Loading Platform(mm) | Length | 6263 | ||
| Width | 2480 | |||
| Wheel Base | 7140+1310 | |||
| Axle | 12T*2 | |||
| Tyre | 11R22.5 X 8 | |||
| Twist Locks | 4 for 1X20'GB | |||
| Fifth Wheel | 2 " / 3.5" JOST | |||
| Reart Flat Bed Semi-Trailer MODEL: 9302TJZP-B | Overall Dimension (mm) | Length | 12461 | |
| Width | 2480 | |||
| Dimension of the Loading Platform(mm) | Length | 12461 | ||
| Width | 2480 | |||
| Wheel Base | 9497+1310 | |||
| Axle | 12T*2 | |||
| Tyre | 11R22.5 X 8 | |||
| Twist Locks | 8 for 1*40'HC and 2*20'GB | |||
| GVW（kg） | 60000 | |||
| Vehicle total weight（kg） | 11000 | |||
| Rated payload（kg） | 49000 | |||
| Suspension | Leaf Spring | |||
| Leaf Spring | /8/8 ( FRONT)+/8/8(REAR) | |||
| Hydraulic system:6 sets Front Lift Cylinder | ||||
Private design is acceptable and specilized.
Steel Structure
Main Beams: 500m deep x 146mm wide x 8mm web welded I-section main beams,Top Flange 14m thick, Bottom Flange 16m thick.
Floor：3mm thick checkered steel plate.
OEM Parts Configuration
King Pin: 3.5” /2” exchangeable king pin.Supplier: JOST.
Landing Gear: 2 speed road side winding with sand shoe, Type: JOST C200T.
Suspension: Mechanical Bogie Suspension with 32T grade.
Options: Bogie Suspension, Air Spring Suspension
Axles: square axle with 16 tons capacity 2 pieces . Supplier & type: BPW/ FUWA/SAF/L1. Made in China.
Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5, Triangle Brand , Made in China. Option By the Factory.
