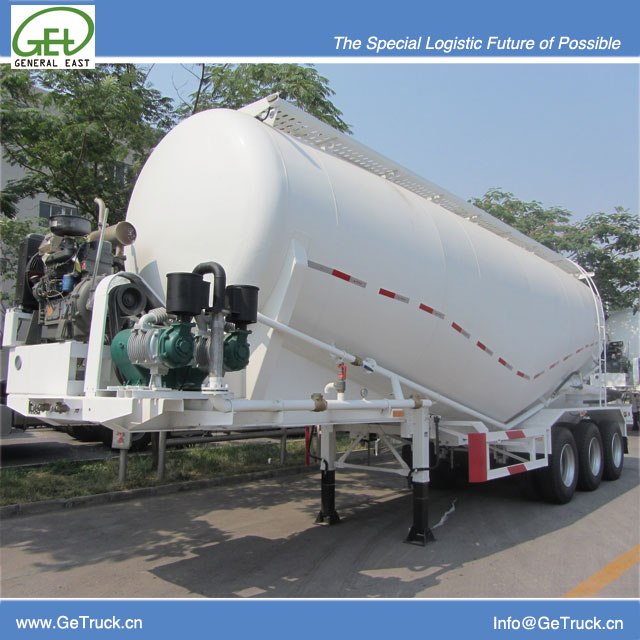

33000L Steel Tank Semi-Trailer with 3 axles for 30 Tons Cement Powder

overall outside dimensio（mm）
Length 10875
Width 2500
Height (unload) 3850
Outside dimension of tank body（mm）
Length 8990
Width 2500
Height
capacity（L） 33000
GVW（kg） 39800
vehicle total weight（kg） 9800
rated payload（kg） 30000

Model:
9333GSN
Brand:
GET,CIMC

Availability:

Product Parameters

33000L Steel Tank Semi-Trailer with 3 axles for 30 Tons Cement Powder			9333GSN
overall outside dimensio（mm）		Length	10875
		Width	2500
		Height (unload)	3850
Outside dimension of tank body（mm）		Length	8990
		Width	2500
		Height
capacity（L）			33000
GVW（kg）			39800
vehicle total weight（kg）			9800
rated payload（kg）			30000
Wheel base（mm）			6180+1310+1310
Tread（mm）	Tread at front
	Tread at rear		1830/1830/1830
Front/Rear Overhang（mm）			/850
Approach/Departure angle（°）			/25
Rated payload of Vehicle saddle			15800
Axle			BPW 12T*3
Axle Capacity kgs			/8000/8000/8000
Tyres			11R22.5*12
Tank Material			Carbon Steel
Transport Material :			cement
Insulated Cover			nile
Suspension			Steel Leaf Spring
Leaf Spring			4/4/4/,7/7//7,/8/8/8
Tank 6mm Carbon Steel for Tank Body, Head with 6mm	Working Pressure (Mpa)		0.2
	Vertical Discharge Height (m)		15
	Horizontal Dischage Distance		5
	Discharging Rate(T/Min)		1.2
	Discharge Pipe		102mm/4inchs*7m
	Standard for the outlet air sources for discharge, Options for Discharge System include Disel Engine ( Electrice Engine) and compressor .

Horizontal Tank effective volume: 33m3. The optional air compressor installation.ABS: security, defense 150 × 75mm ,Wabco Brake System, Clerance: 480

Main Instruction

Max. Volume 60000 Liter

Min. Weight 6800 Kg

Low Center of Gravity

The transport of powder will be specialized step by step according to the requirements of social development; traditional transport modes of pouch packaging and open carriage will fall behind. With the advantages of safety, efficiency and low contamination or pollution to the environment, special chemical powder tanker is the inevitable trend of powder transport in the future.

With leading technologies and advanced production processes, GET provides high-volume, light-weight and low-gravity dry bulk tank semi-trailer to customers. With 60000-liter max volume and 6800kg min weight, it is an optimal transporter for food powder logistic.

Aluminum Alloy Technology Aluminum alloy reduces the weight up to 65% comparing to traditional carbon steel. The aluminum fuel tankers of GET Vehicles provide substantially improved performance than traditional carbon steel fuel tankers in aspects of fuel economy, safety and durability.
Stability System The stability system of GET Vehicles acts as real-time monitoring of driving conditions of the vehicle and intervenes automatically in situations where vehicle stability enters a critical area. Its brakes specific wheels in order to help the vehicle returning to safe driving conditions, preventing rollover or out of control.
Lift-up and Self-Steering Axle System Lift-up and Self-Steering Axle System can increase driving distance and reduce costs of tires significantly. Test results indicate that the total distance of tires mounted on this system can be up to 750000 km, twice or more than traditional system.
Air Suspension Comparing to traditional leaf spring suspension, air suspension can adjust the extent of soft or firm and the height of the vehicle, provide enhanced performance of shock-absorbing and driving safety.
Various Tank Structures GET Vehicles provides various tank structures to fit various demands of customers.
