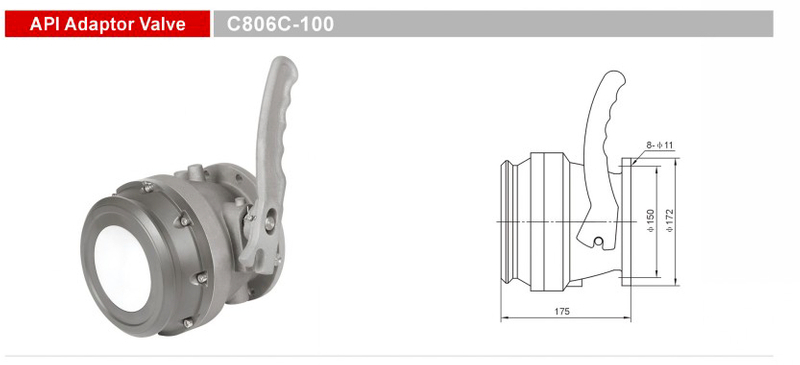

API Adoptor Valve_C806C-100
|API Adoptor Valve-C806C-100|
|TANKER PARTS TECHNICAL DATA|
|Norminal Diameter of API Adoptor Valve||4"|
|Working Pressure of API Adoptor Valve||0.6MPa|
|Max Flow Rate of API Adoptor Valve||2500L/Min|
|Material of API Adoptor Valve||Aluminum Alloy|
|Open Method of API Adoptor Valve||MECHANICAL|
|Temperature Trange of API Adoptor Valve||-20~+70℃|
|Description of API Adoptor Valve|
|API Adaptor Valve is installed on one side of the bottom of the tanker, with the design of quick connection structure. Interface dimension is designed according with the API RP1004 standards. This is an important component of the bottom loading system to get quick detachment without leakage, it is much more safe and reliable when doing the work of loading and uploading. This product is suitable for water, diesel gasoline and kerosene and other light fuel, but it cannot be used in corrosive acid or alkali medium.|
|Benefit and features of API Adoptor Valve|
|1. Hardening Treatment|
The whole valve body is passed a special hardening process to improve its service life
2. Second Gear Open
When do the handle open, there are two stalls to set the flow rate according to the customer’s demand.
3. Standardized size
Interface dimension is designed according to the API RP1004 Standard, docking with the standard API connector.
4. Light Weight
The main Body is made of aluminum alloy; it is more light and sturdy
5. Superior Process Performance
Reasonable design for the less pressure differences ensures the large input and output flow rate
6. With the sight glass
Convenient to observe the inner working situation
7. Foundation for interlock valve
When install the interlock valve, the API Adaptor can be controlled by Air.
When in the situation of no need to replace the valve, just to replace the sealing gasket.
