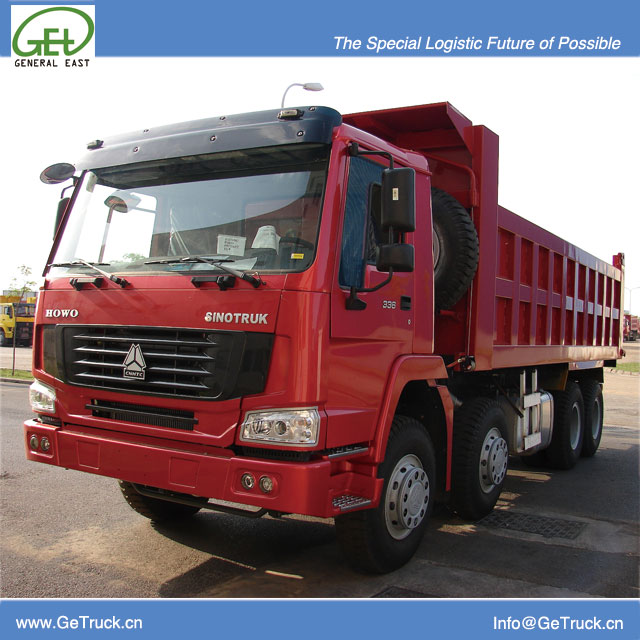

ZZ3317S3867-SINOTRUK HOWO Tipper Truck with 336 HP Engine and 23 cbm Rear Hydraulic Box and 1 sleeping bed

ZZ3317S3867-SINOTRUK HOWO Tipper Truck with 336 HP Engine and 23 cbm Rear Hydraulic Box and 1 sleeping bed

Vehicle Dead weight（kg） 15130
Rated loading capacity l(kg) 15740
Gross vehicle weight(kg) 31000

Model:
ZZ3317S3867
Brand:
GET,SINOTRUK HOWO

Availability:

Quantity:



Inquire Add to Basket

Product Description

SINOTRUK HOWO Tipper Truck with 336 HP Engine and 27 cbm Rear Hydraulic Box			ZZ3317S3867
Weight Parameter	Vehicle Dead weight（kg）		15130
	Rated loading capacity l(kg)		15740
	Gross vehicle weight(kg)		31000
Dimension Parameter	External Dimensions(mm)	Length	10745
		Width	2496
		Height	3450
	Dimensions fo the tipper Van(mm)	Length	7800
		Width	2300
		Height	1500
	Thickness of the Tipper Van(mm)	Floor	10
		Side	8
	Hydraulic System		Hyva
	wheelbase(mm)		1800+3800+1350
	Tread (mm)	Front	2041/2041
		Rear	1830/1830
	Overhang Front/Rear (mm)		1500/2295
	Approach/Departure Angle(°)		19/20
Performance Parameter	Maximum driving speed(km/h)		75
Recommended Configuration	Engine 4 stroke direct injection diesel engine	Engine Type	WD615.47
			Euro II emission standard
		Rated power (Hp)	371
		Displacement (ml)	9.726
		Fuel	Diesel
	Transmission		HW19710
	Clutch(mm)		420
	Axle Capacity( kgs)	Front HF9	9000 DISC
		Rear AC16	1600*2 DRUM
	Fuel Tank(L)		300
	Chassis Cross-section(mm)		300808
	Suspension(Front,Back)		10/12
	Tyre		11R22.5*13

Main Instruction

HOWO heavy duty truck--the most advanced and most superior new generation of heavy duty truck in China, with proprietary brand and intellectual property right, was developed by CNHTC by applying the world advanced heavy duty truck key technology aiming at the market at home and area markets overseas.

HOWO heavy-duty truck adopts the advanced key assemblies, which are reasonably connected by advanced technology. The arrangement of the complete vehicle is perfect; the main assemblies are harmonious, unified and reliable, which makes the complete vehicle have better performance on power, economical efficiency, reliability and environmental protection.

HOWO heavy-duty truck is with luxury and great appearance; it is a combination of fortitude and streamline, sturdiness and elegance. It aims at world heavy-duty truck level on the ergonomic design like comfort ability, safety and accessibility.

HOWO series is comprehensive with Euro2 and Euro3 engine equipped.

Product range: Semi-trailer towing vehicle, goods vehicle, tipper, concrete mixing carrier and other special truck refitted on its chassis.

Driving type: 4×2, 6×2, 6×4, 4*4, 6*6

Power range: 266PS - 410PS.

Product highlight

HOWO series heavy-duty truck built a new standard for domestic heavy-duty truck, aiming at world advanced heavy-duty design and manufacturing technology with incorporation of multi-advanced technologies. It is at domestic leading position in vehicle appearance, safety, comfort ability and ergonomics, and creates new driving experience on heavy duty truck; there are multi-types in this series which are selected by Ministry of Communication of the People's Republic of China as first batch recommended vehicle types. There are left hand and right hand driving types.
