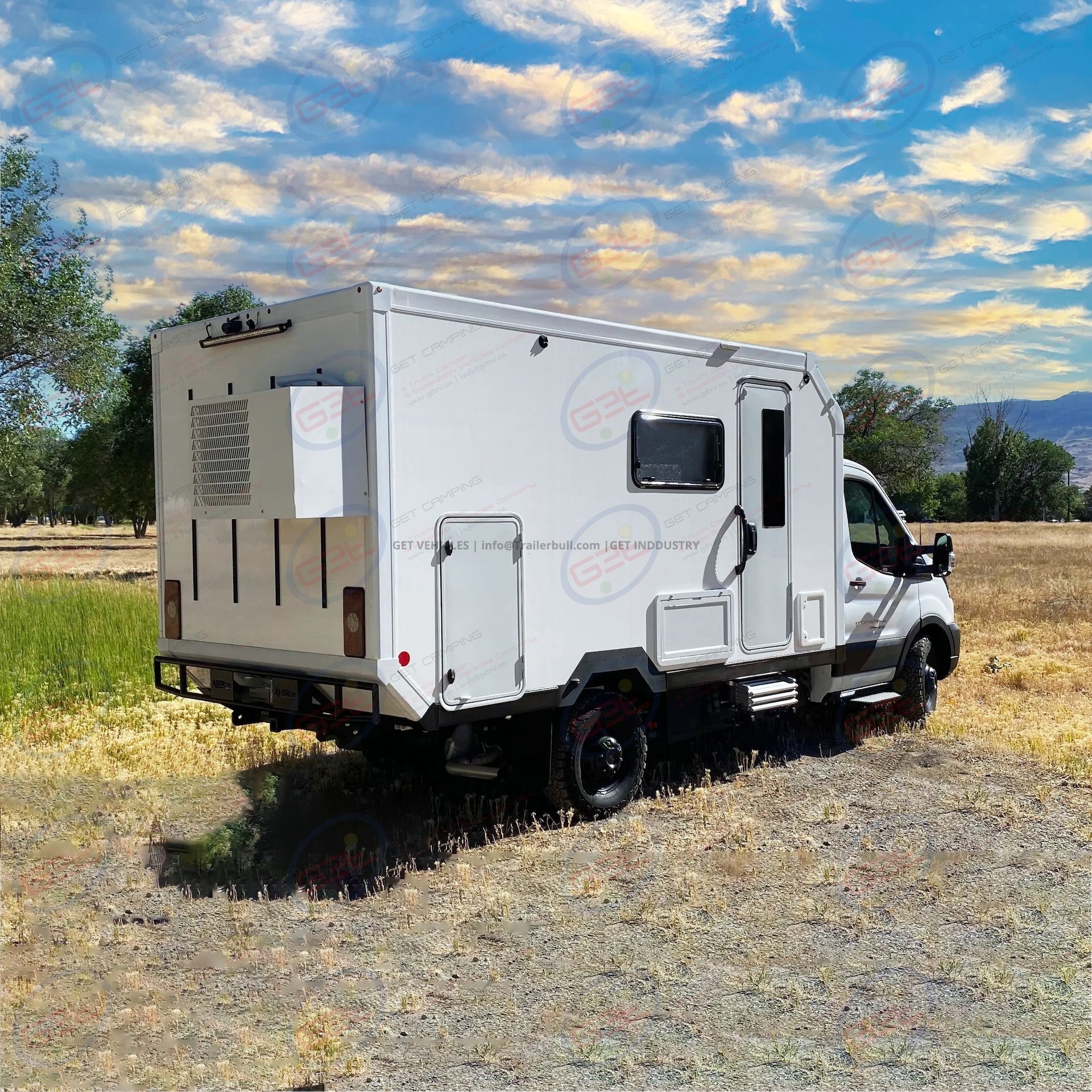

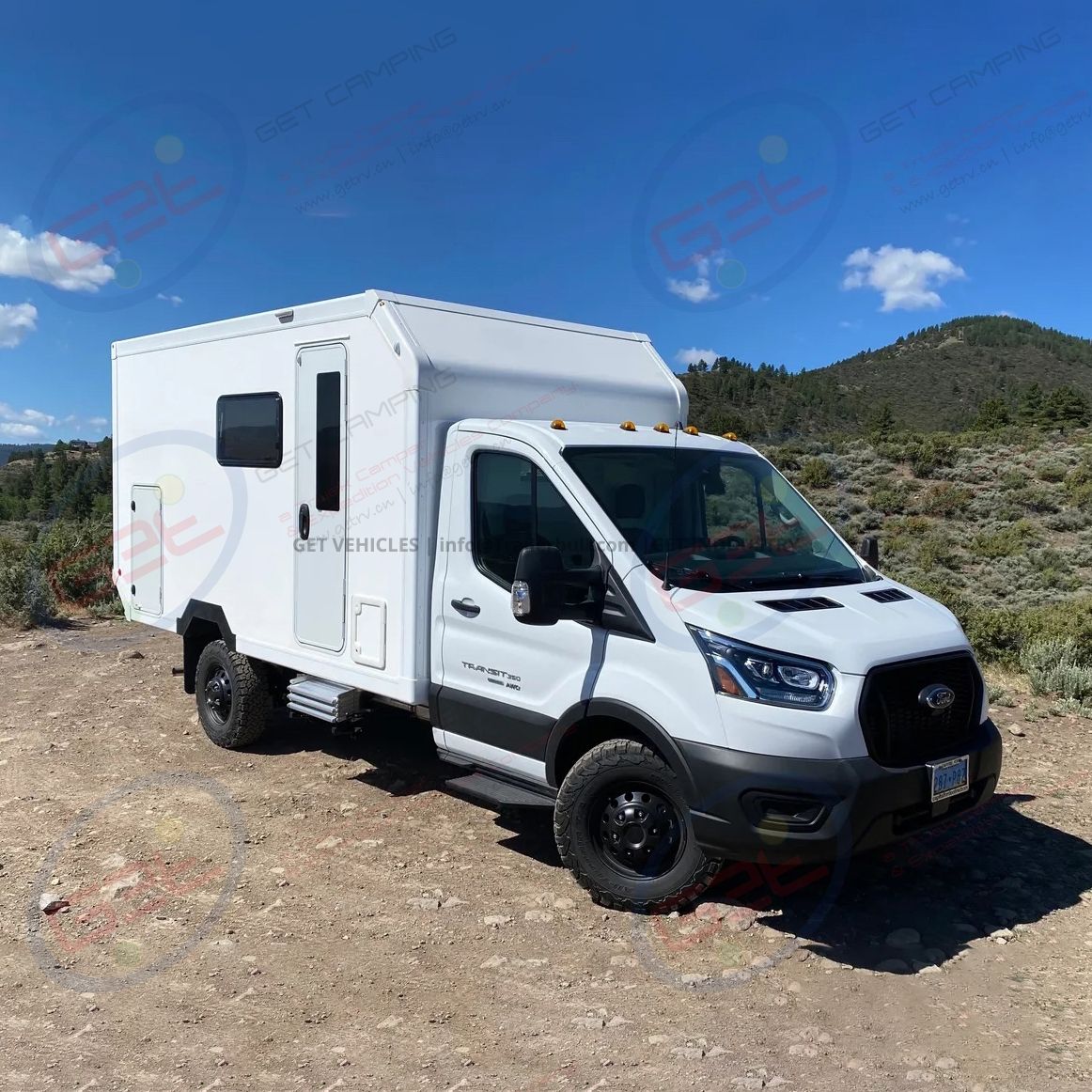

Ford Transit 14FT Flat bed Motorhome Truck Camper

Ford Transit 14FT Flat bed Motorhome Truck Camper

Feature highlights:This 14-foot Ford Transit motorhome camper box is designed for DIY enthusiasts, featuring a self-support structure and 50/80mm composite walls with XPS core for all-season use. It offers a dry weight of 650kg, modern design, and compatibility with FORD-Transit & ETRANSIT 2023MY FNA chassis. The camper includes double-glazed windows, an insulation tear-drop door, and a 45-degree departure angle for enhanced functionality during travel and camping.

Model:
GET.3EXP.148986
Brand:
GET-RV | GET VEHICLES
Code:
GET.3EXP.148986-Empty shell

Models:	Please select GET.3EXP.148986 GET.3EXP.148986+ EV Acrylic windows+EVD GET.3EXP.148986+EVX Safari windows+EVDX Door
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

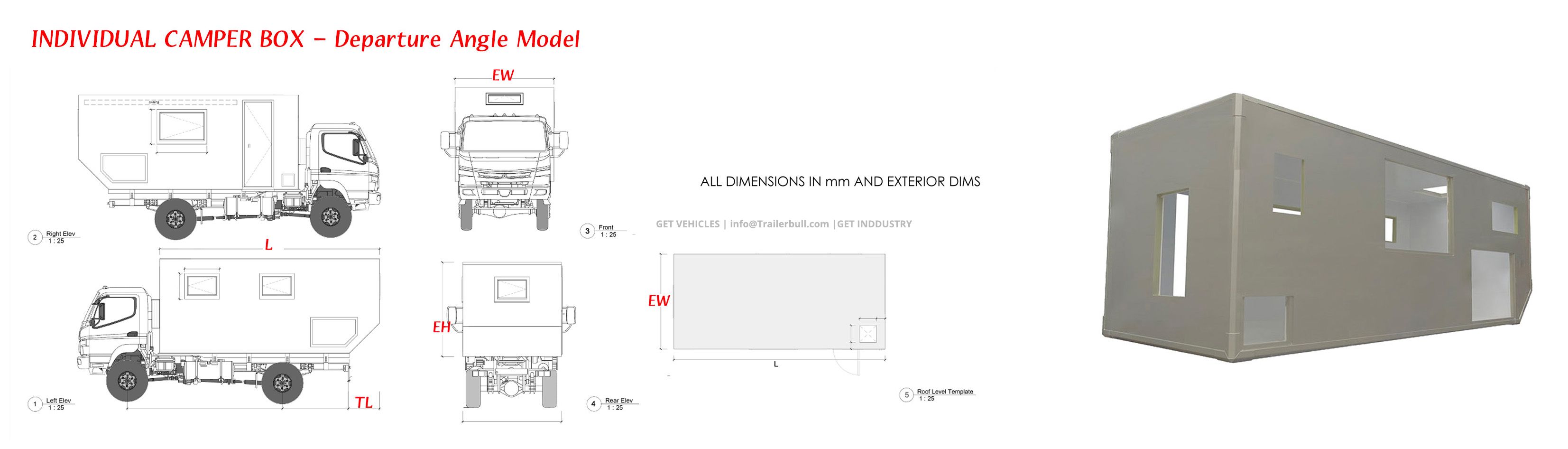

Design Drawing

Parameters

ITEM	DESCRIPTION		EXTERIOR SIZE (mm)			INTERIOR SIZE(mm)
			L	EW	EH	IL	IW	IH
1.1	Panels	DEU Lamilux FRP SCS-V Panel	4,216	2,248	2,192	4,086	2,148	2,032
	Box Type	RV Camper Shell-Departure Angle
	Volume	18 m³	13.8 ft	88.5 ft	86.3 ft	13.4 ft	7.0 ft	6.7 ft
	Panel Area	47 ㎡	FL	BW	TL/SH	ACH	AL	AH
	Camper Design	Rear Corner Cutting Design			150

					5.9 in
	* MCS Panel=Modular Composite Sandwich Panel /SCS Panel=Structural Composite Sandwich Panel; -V =Vacuum Table Composite,-HP-Hydraulic Press Machine Composite

	Wall types	Thickness	L/H-mm	W/H-mm	Constructure
Panel Details	Side Wall Panel	50.00mm	4,216	2,192	FRP + XPS +FRP
	Front Wall Panel	50.00mm	2,192	2,248	FRP + XPS +FRP
	Rear Wall Panel	80.00mm	2,192	2,248	FRP + XPS +FRP
	Roof Wall Panel	80.00mm	4,216	2,248	FRP + XPS +FRP Embeded 5 lines of PVC Tube for wire
	Floor Panel	80.00mm	4,216	2248	FRP+Plywood 4mm + XPS +FRP. With Cross Beam Embeded
	Rear Corner Cut Panel	80.00mm	212	2,248	FRP + XPS +FRP

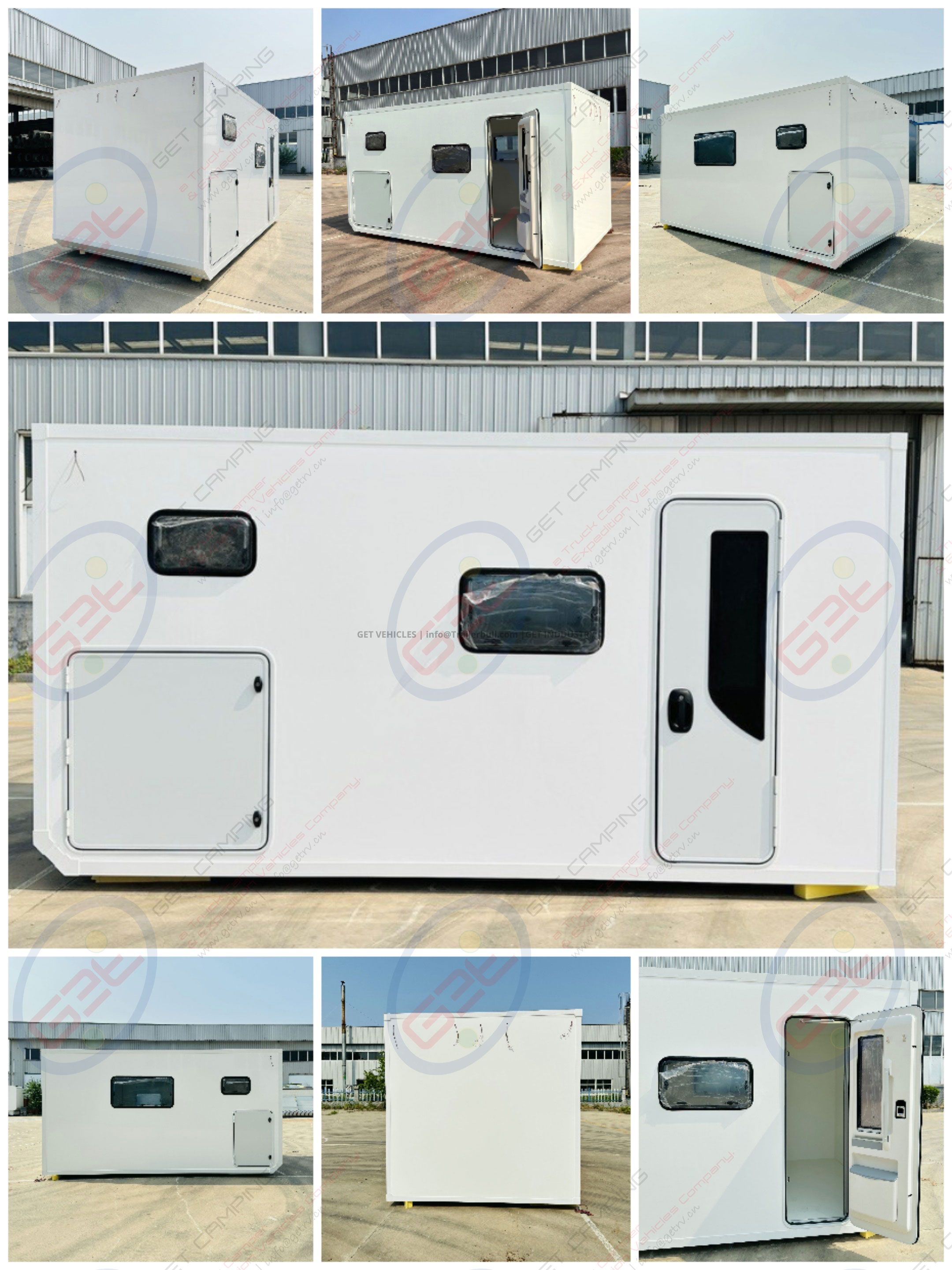

Products Shows

Design Code

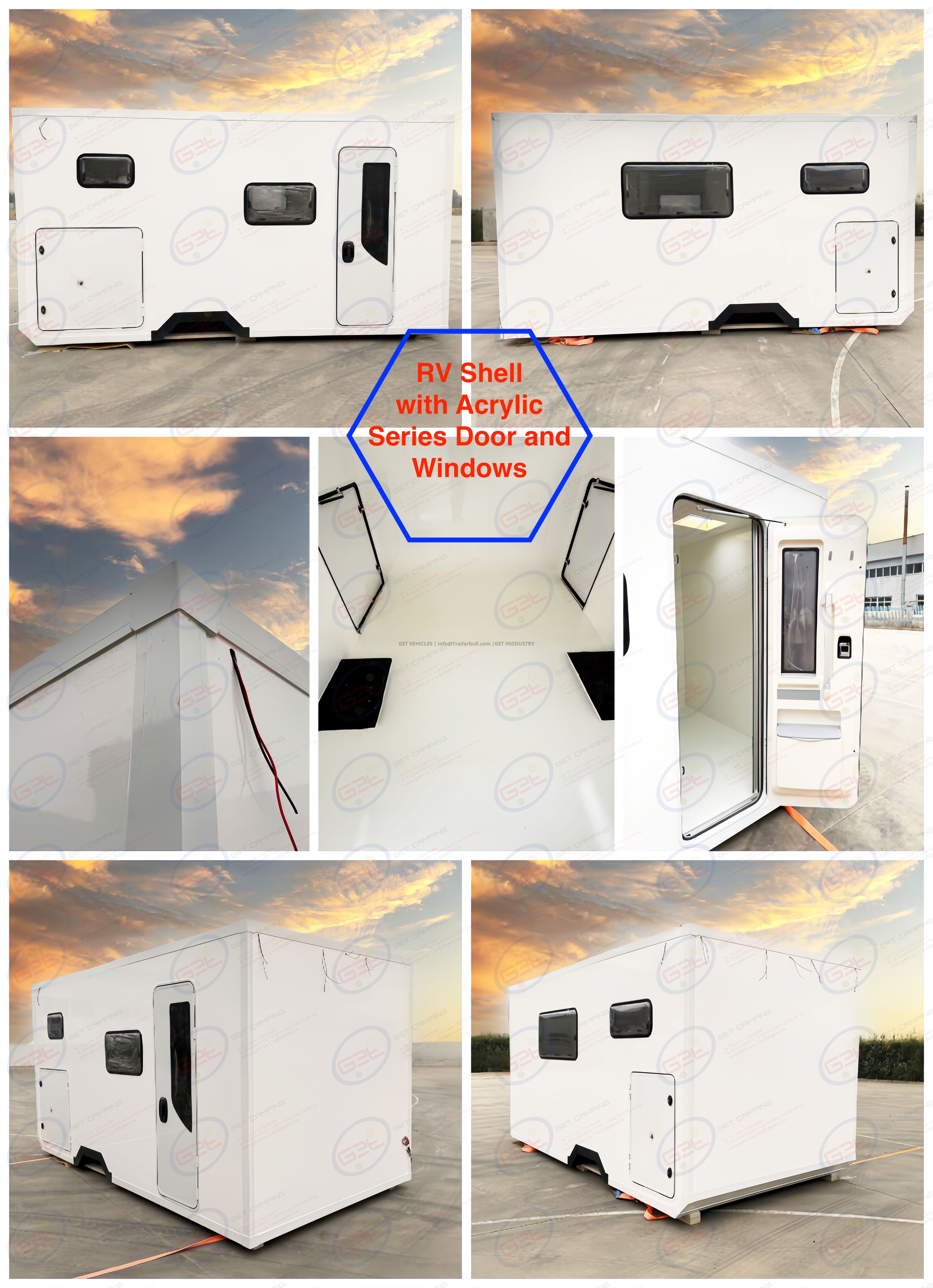

Road Trip Design-With Acrylic Windows and Door

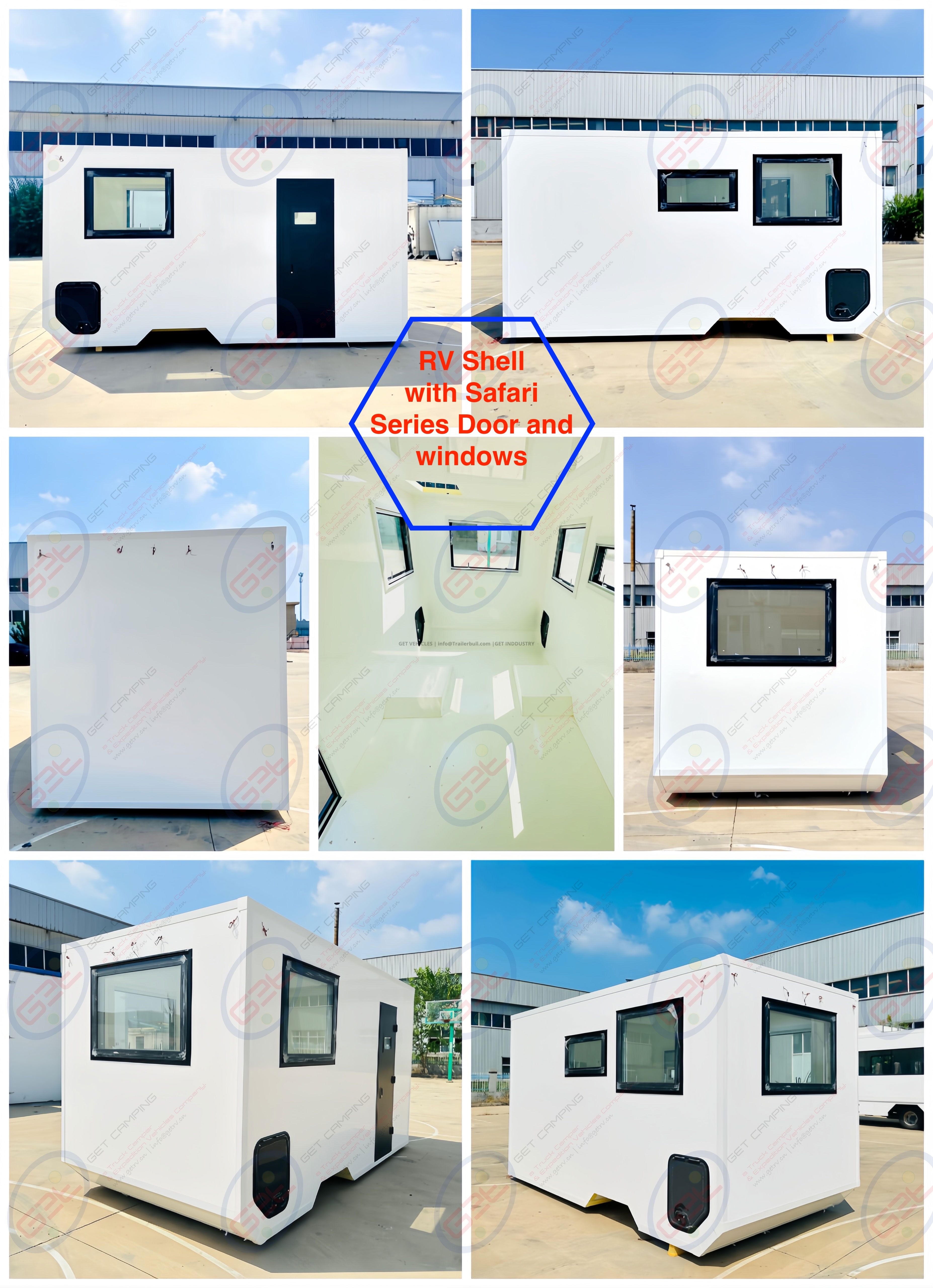

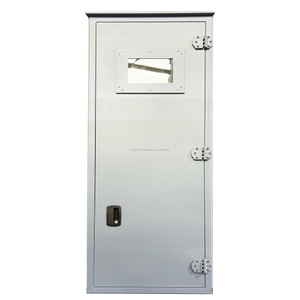

Safari Design-With Glass Windows and Door

FAQ:

Is it a complete Motorhomes with interior or just an Empty Shell for DIY builders ?

it is an Empty Camper Shell for DIY builders, we like to support the DIY builders to make the private dream come true, and not limited by the standard in the market. Free to travel, Freedom to the people.

Can you Customize the shell with special Design ?

Yes, we specialized in the customize of the campers, we like to build the different Campers to make the Camper Market Colorful and diverse and kindness to all DIY Builders

Can you help to make the interior layout ?

We specialized in the customization of expedition truck camper Shell for the DIY and the special Motorhomes makers.

Regarding the interior customization of your RV, we recommend choosing a local interior company. They will have a deeper understanding of your needs, lifestyle, and shared cultural context, ensuring seamless communication and real-time updates on renovation progress. This allows you to actively participate in shaping your future living space and promptly address any adjustments during the process.

Additionally, the interior is where every smile, tear, and cherished memory of your RV life will reside—it becomes an extension of your life itself. Timely maintenance is crucial, and by working with local renovators, you gain access to their immediate maintenance advice and repair services. As a remote provider, we cannot offer the same level of in-person support.

This is why we strongly suggest focusing on our core strength: providing the most robust structure to shelter you from storms and empower your adventures, while entrusting the warm, personalized interior touches to local suppliers who understand your vision best. Of Course we can help you to get our Interior parter in USA if you have not . BTW, at this time, you make the interior from your local can also save a lot of Tariff which is more than 47% which is normally the price difference for the interior between China and USA , but what you got is the design and service around you .
