FRP Modular Composite Bonded Sandwich Panels Kits

FRP Modular Composite Bonded Sandwich Panels Kits

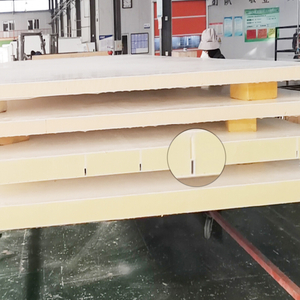

FRP Modular Composite Sandwich Panel Kits is produced with German Technology and Machines,it is the best ideal to build overland Expedition bodies. It allows for maximum diversity of cabin size choices and provides the option to adjust strength requirements through additional plys or wall thickness. The Finished box has superior insulating performance with an approximate thermal K-value of 0.29 w/㎡*k. Typical panels are a solid core 3-ply and all edges sealed by Solid FRP panel that is ultra-high strength, low weight, self-supporting. The plys are hydraulic Press Machine bonded with FRP rude material and Resin with no thermal conduction paths. This panels hold up to the mechanical stresses and dynamic forces, such as flexing, wind, & extreme hot or cold encountered in Overland Travel.

1: All Closed Modular Structure provides the best insulation of U value to less than 0.1.
2: Light in weight:40% lighter than metal.
3: Better insulation: K value of the box less than 0.29w/sqm*k.
4: High in strength : Tensile strength>180MPa Flexural strength>220MPa Barcol hardness 24.6MPa
5: Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
6: Floor and roof Max. bearing capacity up to 0.5 tons / m.
7: Modular Design Easy to assembly and repair at site.

Model:
GET.KG.CB
Brand:
GET RV | BEAST Series
Code:
GET.KG.CB.

Thickness:	Please select 60 65 80 105 Customize
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Main Parameters

FRP Modular Composite Sandwich Panel Kits
1. Instruction of the FRP Modular Composite Sandwich Panel Kits
FRP Modular Composite Sandwich Panel Kits is produced with German Technology and Machines,it is the best ideal to build overland Expedition bodies. It allows for maximum diversity of cabin size choices and provides the option to adjust strength requirements through additional plys or wall thickness. The Finished box has superior insulating performance with an approximate thermal K-value of 0.29 w/㎡k. Typical panels are a solid core 3-ply and all edges sealed by Solid FRP panel that is ultra-high strength, low weight, self-supporting. The plys are hydraulic Press Machine bonded with FRP rude material and Resin with no thermal conduction paths. This panels hold up to the mechanical stresses and dynamic forces, such as flexing, wind, & extreme hot or cold encountered in Overland Travel. 1: All Closed Modular Structure provides the best insulation of U value to less than 0.1. 2: Light in weight:40% lighter than metal. 3: Better insulation: K value of the box less than 0.29w/sqmk. 4: High in strength : Tensile strength>180MPa Flexural strength>220MPa Barcol hardness 24.6MPa 5: Non-corrosion, non-pollution, anti-brine, acid and soda-resisting. 6: Floor and roof Max. bearing capacity up to 0.5 tons / m. 7: Modular Design Easy to assembly and repair at site.

As this box is Original German Technology , with wet-in wet process made, all the surface FRP are made with the rude Fibre glass material with an chemical process, so all the panels is sealed wtih the FRP, and made the panel as an whole like a pie. so we called FRP-Pie Modular Panel.
2. General Of the Modular FRP Modular Composite Sandwich Panel Kits
Max. Length of the Panel Kits		14750mm
Max Wideth of the panel Kits		3200mm
Thickness of the Panel Kits		60,80,82,105,mm120mm
K Value of the FRP-Pie Truck Body
Tensile strength		>180MPa
Flexural strength		>220MPa
Barcol hardness		24.6MPa

FRP-Pie

3. Super Structure

Self-supporting Panel, FRP Bone And Skin Structure without cross bars , inside and outside skin made of glassfibre reinforced polyester, reinforced with FRP Z-Straps as the bone, the Core of hard foam with best insulation properties, which are all sealed in the FRP Skin Covers and Vacummed.
Without metal carrier elements = without direct heat conductivity Without Opening Edage (Panel insde Vacummed )= without heat conductivity
PANEL TYPE	THICKNESS	Application
Standard Panel Kits	Length 0-14750mm Width 0-3200mm Thickness 27-135mm	1. Insulated & refrigerated truck body side and roof wall.
		2. RV and Expedition side and Roof Wall.
		3. Mobile Cold Room Side Walls
Floor Panel Kits	Length 0-14750mm Width 0-3200mm Thickness 27-135mm	1. Insulated & refrigerated truck body Floor.
		2. RV and Expedition Floor Wall.
		3. Mobile Cold Room Floor Wall
Super Strong Roof	Length 0-14750mm Width 0-3200mm Thickness 27-135mm	1. Refrigerated Meat hanger truck body roof wall.
		2. Mobile Meat hanger Cold Room roof wall
Side Door / Windows Embedded Reinforcement	Length 0-3000mm Width 0-3200mm Thickness 27-135mm	1. Insulated & refrigerated truck body side Door
		2. RV and Expedition box Windows and Entry Doors
		3. Mobile Cold Room entry Door.

FRP-Pie Modular Panels

4.Description of material

FRP-Modular composite sandwich kit elements are manufactured in accordance with the "wet-in wet" method , with integral polyester reinforcement, however without any metallic carrier elements whatsover , in a homogenous construction method. the foam core consists of polyurethane resp.prepolymer-foam with optimum insulating properties, the inner and outer skin of glassfibre reinforced polyester. The individual elements are hermetically sealed on all sides
Core Thermal Polyrethane Foam All panels, Floor & Roof of the box will be insulated with POLYURETHANE foam (PUR/PIR) of density 40KG~45/M3, which can carry the Thermal Conductivity value 0.3kcal/M3.
KOMMERLING Two component reaction adhesive
Base	Polyurethane, 2-components, solvent-free
Hardener Colour Consistency	Köracur TH 650
	Beige
	Highly fluid, easily brushable
Density
Körapur 672	1.66 (resin)
Köracur TH 650	1.23 (hardener)
mixture	1.41	g/cm³	DIN 53 479
Viscosity
resin : hardener	30
hardener	200
mixture Mixing ratio	8000	MPa•s	Brookfield RVT
resin : hardener	05:01	units by weight
resin : hardener	3.7 : 1	units by volume

Pot life	60	min
Hardness Shore D	60		DIN 53 505
	-20°C: ca. 24	N/mm²	DIN 53 283
	+20°C: ca. 18,5	N/mm²
Shear strength	+80°C: ca. 5,2	N/mm²
Tensile strength	18	N/mm²	DIN 53 404
Consumption	250-300	g/m²	depending on substrate

German Origin PRessur Machine

Insulation PU Material

FRP Modular Composite Sandwich Panel Finished Box

Driver Side Elevation

Front Side Elevation

Rear Side Elevation

Entry Door Side Elecation

5. The main characters

Advantages
1) Light in weight:40% lighter than metal. 2) Better insulation: K value less than 0.3w/sqm*k. 3) High in strength and long life: 5 times longer than metal. 4) Non-corrosion, non-pollution, anti-brine, acid and soda-resisting. 5) Floor Can meet forklift’s operation, Ceiling can let the Meat hooks fix without special enforcement, bearing capacity up to 2 tons / m. 6) Easy to assembly and repair at site.
Fault:
1) The FRP chemical with Glues cannot guaranty the Smoothness of the Skin, so it need paint after assembled. 2) More FRP Chemical Harden inside as Bone of the panel, so it is 10% Heavier than the Composite Sandwich Panels 3) Too Strong, Long life than the Chassis, you may Change the Chassis during its life.

6. Box Installation Process

Requirements for installation:
Crane or alternative lifting equipment
Standard assembly tools, i.e. pneumatic screwdriver, wrenches, etc.

FRP-Pie Panel KIT:
Prepare the Floor Panels
Mount the Walls from front , side, roof to the floors and Clamp with C-Clamps
Mout the Portal and Clamp the Assembly box with C-Clamp, Wait a Setting Time of 8 Hours .
Paint the setted box with the color you like
Mount the box to the Chassis Prepared .
Install the required options like Proficles and lights
Finishin

1. Floor-Front Wall

2. Side Walls adhesive

3. Roof Adhesive

4. Amount to Truck

Brief Instruction

China MAN EXPEDITION TRUCK 3

GET.6EXP.
LIGHT AND STRONGER MODULAR BOX
BY TRAILERBULL

TRAILERBULL engineered expedition box types are available to accommodate your ideas about Expedition Vehicles. Though the basic needs of globetrotters are much the same, their demands on the vehicle itself differ lone traveler, twosome, family, class of driving license, destination, infrastructure, terrain, duration of the journey … All these criteria ultimately determine the optimum vehicle and the suitable chassis.

GET.6EXP can translates these criteria into 3 Expedition box models geared to these different requirements thanks to our durable GRP Sandwich panel composite technology offers top performing strength.

TRAILERBULL With different wall panels (FRP-Pie Modular Panel, FRP-Plast Sandwich Panel) to meet all the popular chassis and requirements in the world and already have proven themselves on the actual journeys of many satisfied customers.

FAQ

-Can you pre-cut openings for windows and doors?

We can offer this service with cost as we have embeded strengthen parts inside, but that will be confirmed before producing. your own Openings can easily be cut with a jigsaw and plastic rated blade, but the embeded strengthen parts can not make . So if it willl work in really bad expedition, you'd better let us pre-cut opennings for windows and doors.

Can you do departure angles?

Yes, we have two size of the box shape, one is the standard square shape , the other is the departure angle design. Please mark the desired angle (including dimensions) in the quoting template if you need.
