WALK-IN deep Freezers Galvanized Steel Plate with PU Composite sandwich panel,Cold Room

Share to:
Galvanized Steel Plate with PU Composite sandwich panel
Material: Galvanized Steel Plate with PU Composite sandwich panel

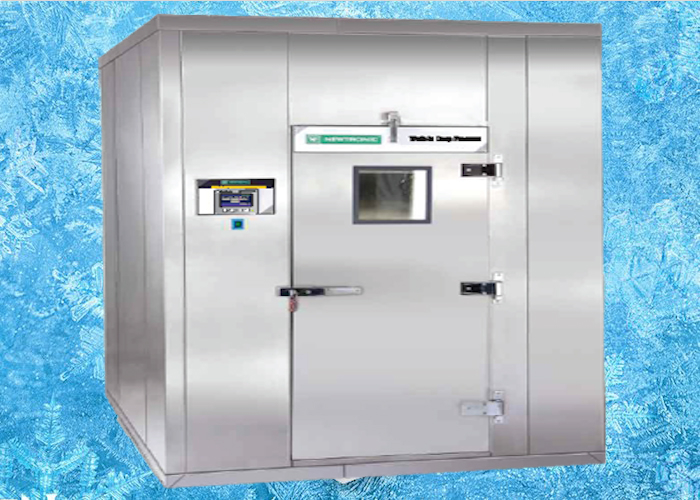

  • Walk In Deep Freezer Room

  • GET

  • 8704


Product Parameters


Galvanized Steel Plate with PU Composite sandwich panel,Cold Room

The cold storage is a warehouse creating the suitable humidity and cold condition with the use of cooling facility which is also known as the refrigerated storage. It is a place to process and store the products. It can get rid of the influence of the climate , prolong the storage period of various products to adjust the market supply.


Our Cold storage is mainly used for the constant-temperature storage of food, dairy products, meat, aquatic products,poultry, fruit and vegetable, cold drink, flower, green plant, tea,medicine, chemical raw material, electronic instrument, etc.

    Galvanized Steel Plate with PU Composite sandwich panel
Panel Structure Galvanized   steel +PU+Galvanized steel
Stainless steel + PU + Stainless steel
K Value:  W/〔㎡•K) 0.027
Insulation System Internal   Dimension :2.5m(L)x2.1m(W)x2.5m(H)
External dimension:2.2m(L)x1.8m(W)x2.2m(H)
Roof &Wall&Floor panel: 150mm
Polyurethane Density: 42±2 kg/m3
Floor Strength: 1.2mm Aluminum sheet
0.5mm Pre-painted galvanized steel sandwich   polyurethane foam with cam-lock
Door System Germany   brand lock system
700mm(W)x1700mm(H) single open swing door With   heating wire
Fitting   system LED   light & Switch & Sealant
Refrigeration system Compressor:Maneurop   ; Cooling Capacity:1621(W)
Working Condition: Refrigerant:R404a &   Voltage: 380V/50HZ
Display System 3   units display rack
3units storage rack
3 units replenishment device
3 units swing open glass door; Glass door   dimension:703mm*1750mm

Polyurethane Sandwich Insulation Panel
Foam-in-place Polyurethane as the Insulation   material of the panel inject into molds of the Full-Automatic laminating   Machine foam together with the surface plate to be a complete panel at one   time to get the best insulation performance and strength.
1 High intensity and good thermal insulation   performance
2 Easy assemble Design, Panels joint with   Eccentric lock, 30 sec/joint.
3 Multi-products and specifications can meet   different needs and requirements
Thickness: 75mm, 100mm,120mm 150mm   180mm,200mm,
Length from 1000mm 5o 12000mm
Width: 960mm,
For drug products intended for storage at sub-zero   temperatures, GET Deep Freezers provide a very optimal solution by offering a   wide temperature range from 0ºC upto -20ºC
Deep Freezers are equipped with a Standby Cooling   System to significantly minimize breakdowns. The switchover to Standby system   is automatic & immediate upon detection of a fault in Primary. If   desired, the switchovers can also be scheduled or manual ones.
    They also offer automatic defrost by utilizing a heater to defrost the   condenser coils, which cycles on and off, preventing any ice build-up. Their   robust compressors and CFC-free insulation help ensure temperature uniformity   and sample protection
