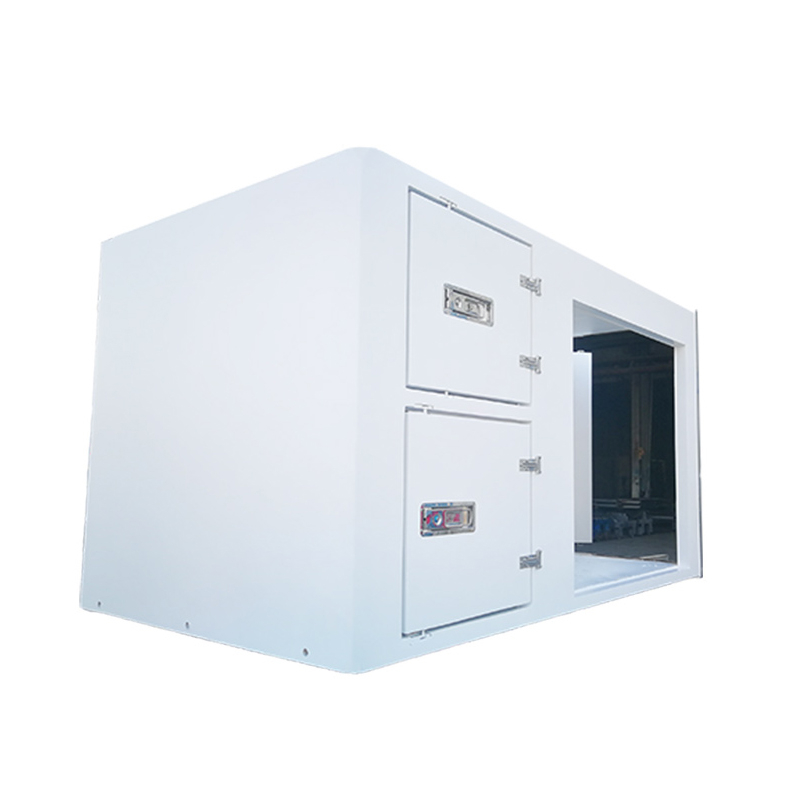

Urban Distribution Truck Box

Share to:
Multi-Compartments

With different compartments for different temperature and food like fruits and vegetables and meat.

Some compartments is insulation only for normal food, some is frozen with refrigeration units for meat and frozen cargos, some is cool place for fresh vegetable or other fruints to meet the urban distribution purpose."
  • GET.6KDX.XPS.
  • GET INDUSTRY | TRAILERBULL
  • GET.6KDX.XPS.
Wall Stru.:
Quantity:

Product Description

1. Product Overview

a refrigerator truck body or chiller is a box designed with XPS /PU insulation foams to carry perishable freight at low temperatures. Refrigerator truckbody can be ice-cooled, equipped with any one of a variety of mechanical refrigeration systems powered by small displacement diesel engines, or utilize carbon dioxide (either as dry ice or in liquid form) as a cooling agent. These Truck Box is mainly designed for the cargos 's transportation asked the temperature controls , like frozen cargos, fresh foods & fruits , and other temperature sensitive machines .


Our Refrigerated truck box can get the best insualtion , with Refrigeration units can give an temperature range of -40 ~ +15 ℃ for almost general cargos transporation.


2. Features at a Glance

Urban Distribution Truck Box-1

Multi-Compartments



With different compartments for different temperature and food like fruits and vegetables and meat.


Some compartments is insulation only for normal food, some is frozen with refrigeration units for meat and frozen cargos, some is cool place for fresh vegetable or other fruints to meet the urban distribution purpose.


Urban Distribution Truck Box-13

Front Side Elevation

Urban Distribution Truck Box-9

Interior Elevation*

Urban Distribution Truck Box-5Rear Lock Elevation

Urban Distribution Truck Box-7

Side Front Elevation

3. Product Parameters

Multi-Compartments Truck Body for Urban Distribution Truck
MODEL:  GET.6KDX.XPS.
There are many small Retails asked different cargos at small quanity which is also need to delivery under cold Chain to keep its fresh and healthy. Our this Urban Distribution can amount to all the City Pick Up Chassis, box divide to different compartments for the cargos basket with Rails , that can help you to distribute more kinds of cargos for more retails in the downtown .
Urban Distribution Truck Box-10

SPECIAL REQUIREMENTS


Multi-Compartments


With different compartments for different temperature and food like fruits and vegetables and meat.


Some compartments is insulation only for normal food, some is frozen with refrigeration units for meat and frozen cargos, some is cool place for fresh vegetable or other fruints to meet the urban distribution purpose.


GENERAL PARAMETERS
K .Value for the Composite Box 0.295 W/㎡ ℃
Max. Overall Length 12 ft 3,525 mm 0~14750mm can customized
Max. Overall Width 7 ft 2,000 mm 0~ 3200 mm can customized
Max. Overall Height 6 ft 1,925 mm 0~3200 mm can customized
Max. Floor Thinckness 3 .23 inch 82 mm 45-105mm can customized
Side Wall Thickness 3 .23 inch 82 mm 45-105mm can customized
Front Wall Thickness 3 .23 inch 82 mm 45-105mm can customized
Rear Door Panel 3 .23 inch 82 mm 45-105mmcan customized
Roof Wall 3 .23 inch 82 mm 45-105mmcan customized
Compartment Walls 1 .77 inch 45 mm

4. Box Structure

super Structure self-supporting body, without cross bars , inside and outside skin made of glass fibre reinforced polyester, reinforced with Z-Straps , the Core of hard foam with best insulation properties.
Without metallic carrier elements = without direct heat conductivity
The body are water tight
the plastic elements are flam resistant
Rear Wall Two -wing Rear door , approx ,80 mm thick with 5-fold special sealing ,rigid frame joints.
Each Door Wing with 1 external power-brace lock with one -hand operation
Door Wings inclinable to the sidewalls with hold-open device (loose)
Portal stainless Steel
Surface The Plastic elements are painted white, White gelcoat colour both side, uv resistant, food grade approval

5. Rear Door

2 panels full opeing

2 Panel Full Opening

3 Panels full opening

3 Panel Full Opening

4 panles full opening

4 Panel Full Opening

2 Panels Narrow Opening

2 Panel Narrow Opening

Single Panel Narrow Open

single Panel Narrow Opening

Overhead Rear Door

Overhead Rear Door


6. Side Door ( Optional )

Single Opening

Single Opening

Double Opening

Double Opening

Single Roll up door

Single Roll-up door


7. Aluminum Extrusions :

Alu Extrusion

The used aluminum profile andonized silver , heat treated , harden metal which is made 6063 alloys,to wear resistance and strength to the box.

Alu. Extrusion Extruded Angle 100 X 150 X 3mm,Made Of Aluminum Include Front , Rear, Top And Lower Round Corners. To Protect The Corner And The Side Of The Van.
Interior wrapping edge Made of aluminum only the top side to arrange the wire of the light.
Front Vertical Extrusion Made of aluminum alloy to protect the side edge of the van,vertical in the front is half round model,  horizontal side is 90 degree angle model.


8. Box profiles (Optional)

Checked Alu.Floor

Alu. Checked Floor

Alu T Rail Floorjpg

Alu.T Rail Floor

Load securing rail

Load securing rail

PVC Curtain

PVC Curtain

Cargo Versatile Shelving

Cargo Versatile Shelving

Temperature Partition

Hard Movable Door

door-in-door

door-in-door

Tail Lifter

Hydraulic Tail Gate


9. Temperature control

Refrigeration Partners

Refrigeration units:

Manufacturer :  thermoking or Carrier,

Refrigeration unit type : Engine Powered,  Diesel Powered , Full- Electric Units; standby can Customize

Refrigeratant : R404


Temperature sensors for medicine
two constant monitoring sensors, with the led interface panel in driver’s room for continuous monitoring of temperature, equipped with an alarm system.


Temperature sensors for normal carogs:


one constant monitoring sensors, with the led interface panel in driver’s room for continuous monitoring of temperature, equipped with an alarm system.

10. Amounted to the Trucks

Volvo冷藏车 018

Volvo Truck Chassis

 Hino

Hino Truck Chassis

Toyota Hilux Freezing Truck-1

Toyota Hinlux Chassis

FORD

FORD Truck Chassis

Isuzu

ISUZU Truck Chassis

JMC

JMC Truck Chassis

Foton Aumark

FOTON Aumark Chassis

HOWO

HOWO Truck Chassis

11. Installation:

It is very easy to assemble our insulated bodies, because applying polyurethane adhesive to the joint area of the FRP-Pie Panel Kits sandwich panels, which ensures the joint reliability and optimum insulation, forms them. All bodies ckd we provide have included all necessary accessories such as aluminum angles, aluminum corner, sealing glues, screws, side guards, etc. Therefore, you can assemble them by yourself without purchasing any material. Generally, 3-4 workers can assemble 5-6 bodies everyday. Moreover, at the beginning we will assign our engineers to supply you some technical guidance.
CKD Panel Kits 1. Prepare the chassis
2. Mount the partial Sub-Chassis and the floor plate on the chassis with Supplied U bolts and other parts
3. Mount the side, front and the roof and the Rear Door Portal and the door with Glues approx.1.5 hours, with a set time At Least 8 h at  +20 ℃ .
4. Install the required options
5. Finishing
CBU Box 1.Prepare the chassis
2. Mount the BOX together with subframes on the chassis
3. Install the required options
4. Finishing


12. FAQ

What’s the material of your refrigerated truck body?

We can produce FRP (Fiberglass Reinforced Plastic), Color Steel Sheet and Stainless-Steel Material for the refrigerated truck body.

The Core Material can be PU, XPS.


If want the price, what should offer us the information?

You need offer us the material, size (LxWxH and the thickness of the panel) and quantity of the truck body as the basic information.


What is the CKD and CBU means?

CKD means completely knocked down. That means offer all the parts of the truck body (Semi-finished products), you need assemble the box first, then amount to your truck chassis. Though you must do some works, but it can save much shipping charges.
CBU means completely Building Unit. That is, we offer you the whole truck body, you just install it your truck directly.



How long life of your truck body?

 It depends how will use it. Normally, the life is about 15~20 years
