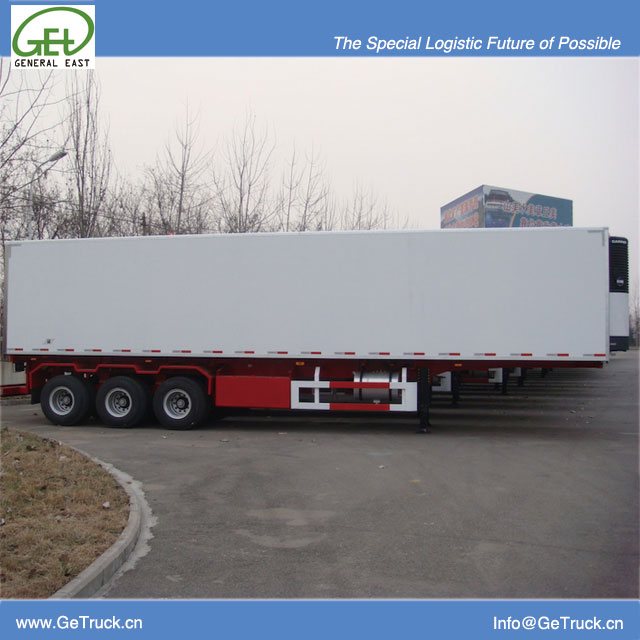

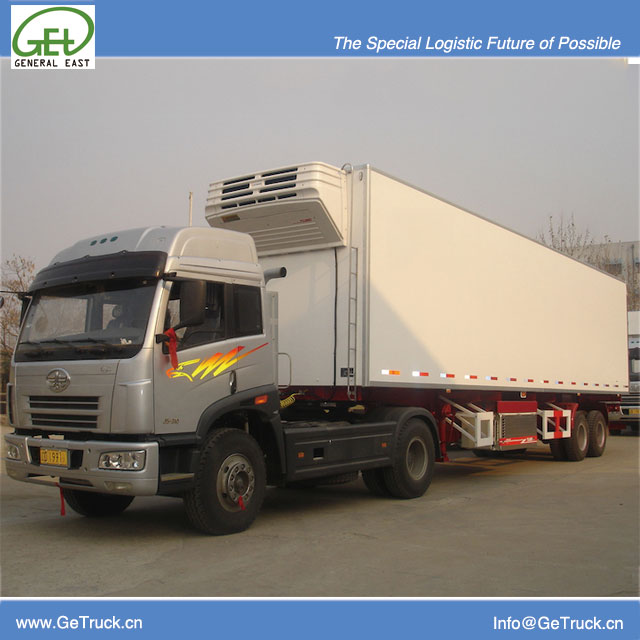

11900mm Koegel type Composite Insuated and Refrigerated kits and Box

External Internal
LENGTH 11900 11736
WIDETH 2545 2381
HEIGHT 2440 2230
Volume (m3) 62.31

Model:
11900mm Koegel type Composite Insuated and Refrigerated kits and Box
Brand:
GET

Availability:

Product Parameters

11900mm Koegel type Composite Insuated and Refrigerated kits and Box
The Refrigerated and insulated box can fit for the Chassis of VOLVO,BENZ,MAN,And Scania, Isuzu,JMC,JAC,Foton,DongFeng,FAW,Yuejin,HOWO,Sinotruk,ShacMan,Beiben,
	External	Internal	Box Panel Thickness(mm)	standard	ice Cream body
LENGTH	11900	11736	Roof panel	105	105
WIDETH	2545	2381	Front &Rear Wall	82	105
HEIGHT	2440	2230	Side Wall	82	105
Volume (m3)		62.31	Floor	105	105
INSULATION MATERIAL		All panels, Floor & Roof of the box will be insulated with POLYURETHANE foam (PU) of density 40KG/M3, which can carry the Thermal Conductivity value 0.3kcal/M3. THE gas leakage rate OF THE BODY INSULATION IS LESS THAN 0.3W/㎡*k			standard
DRAIN PIPES		2 nos. PVC U-pipe,30mm dia. drain with drain cap at the front end.			standard
INTERNAL KICK PLATE		Aluminum Checked kick plate of 30cm high for leak proof and wall protection.Thickness 3mm			options
FRONT WALL REINFORCEMENT:		1.Steel Plate designed as supporting frame to carry the cooling unit safely, suitable for THERMO KING or Carrier . 2. Cooling unit cut out finish GRP frame 3mm thick.			options
FLOOR	Floor Construction	1.All Closed Struture , without any Metal . 2. Enforcement of built in wooden cross members to keep the transverse force condition of the panel. 3. Polyurethane insulation of overall thickness 82mm. density 40kg/m3 under a Layer of the plywood 12mm.thick 4. GRP skin 2.5mm thick
	SURFACE	Standard:The floor surface is covered totally by White GRP made together with the floor panel. options: aluminum checked plate ，aluminum channels as repuired.			options
ALUMINUM PROFILES	The used Aluminum profile andonized silver , heat treated , harden metal which is made 6063 Alloys,to wear resistance and strength to the box.
	External ANGLE	Extruded angle 100 x 150 x 3mm，Made of Aluminum include front , rear, top and lower Round corners. To protect the corner and the side of the van.			options
	Interior wrapping Edge	Made of Aluminum only the top side to arrange the wire of the light.			options
	External wrapping Edge	Made of Aluminum Alloy to protect the side edge of the van,Vertical in the front is half round Model, Horizontal Side is 90 Degree angle Model.			options
Lights	Internal :	Internal light LED type 24V-8W, 2no’s moisture resistant. Fixed in the roof.			standard
	External :	2+2 no’s light, at front and rear at top,front is white, rear is red.			standard
PLASTIC CURTAINS	SIDE DOOR	PVC plastic curtains 3mm thick x 200mm wide, overlapped, long enough to cover the full height of the Side door.			options
	REAR DOOR	PVC plastic curtains 3mm thick x 200mm wide The curtains are hanging on female stainless steel part joined to the male part fixed on the roof.			options
REAR DOOR	DOOR TYPE	2 wing rear doors with GRP outer and inner skin, full open . Options: 3 wings rear doors, Tail Lift at the rear.
	DOOR HARWARE	The accessories fitted with the door is made of stainless steel. 2 nos. container type locks plus door retainers.
	DOOR SEALS	All edges of the door fitted with double Aluminum Profiles & EPDM rubber Gasket . Sealing against rain & dust
	DOOR HOLDER & STOPPERS	2 Sets of stainless steel door retainers fitted strongly on built in plates inside the panels. 2nos. of rubber made stoppers.
	DOOR HANDLE	20cm long 14cm dia. Stainless steel pipe to be mounted to the left door to hold the person get into the box
Sub-frame		Carbon Steel 16Mn, Dimenison per customer's chassis specification
Finishing-color		white gelcoat colour both side, UV resistant, food grade approval
Other Options
A)Side door (single opening)		940*1740mm Single Wings open options: Double wings open			Options
B) Partition (removable)		To Part the van space to different cargos loading space with different Temperature ( if the Refrigerator unit can)			Options
C) Meat Hang Hooks		to hang the the big meat or fish to the roof			Options
Refrigerator		Thermoking,CARRIER,MITSUBISHI

Main Character

All-close panels produced with German Technology and Machines, adhesive structure with the type of building block, Freon-free polyurethane vesicant material is our innovation,which are very different from traditional open sandwich panel with connect by metals, injected polyurethane at site with Freon.Our surfaces of panels are FRP, the middle with PU foam sheet, The Both surface FRP is connected by FRP stiffener to the whole, During producing, the E-glass fiber, UPR(unsaturated polyester ester resins) and fluorine-free PU foam structured together after heating and pressing , which also makes a layer of UV protection, waterproof, anti-aging, Anti-corrosion in the outer side surface of the panels at the same time.

The main characters are as follows:

1. Light in weight:40% lighter than metal body.

2. Better insulation: K value less than 0.3w/sqm*k.

3. High in strength and long life: 5 times longer than metal body.

4. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

5. Easy to assembly and repair at site.

It is also very easy to assemble our insulated bodies, because applying polyurethane adhesive to the joint area of the all-closed sandwich panels, which ensures the joint reliability and optimum insulation, forms them. All bodies CKD we provide have included all necessary accessories such as aluminum angles, aluminum corner, sealing glues, screws, side guards, etc. Therefore, you can assemble them by yourself without purchasing any material. Generally, 3-4 workers can assemble 5-6 bodies everyday. Moreover, at the beginning we will assign our engineers to supply you some technical guidance.

Technology

MATERIAL OF THE BODY PANEL	Outside panels are claded with high quality fiberglass of more than 3mm.thick in one–Complete with whole panels after the Alkali Free Glassfibre heated and high-pressed, white color, food hygienic and vermin proof materials
	MAIN MATERIAL	SURFACE LAYER OF PLASTIC RESIN CLOTHING, WATERPROOF :ASHLAND
		Panel Producing layer order
		ALKALI FREE GLASS FIBRE/无碱玻璃纤维
		UNSATURATED POLYESTERS RESINS: DIC BRAND FROM JAPAN/不饱和聚酯树脂
		COLOPHONY : ASHLAND BRAND FROM AMERICA/胶衣树脂
		PU : PUREN BRAND FROM CHINA & GERMANY JOINT VENTURE /聚氨酯（PU）泡沫
		BOND : HENKEL BRAND FROM GERMANY/粘合剂德国汉高
Producing Equipment And Technology	1. Adopt the know-how and special equipments of Kogel Fahrzeugwerke AG to produce the sandwich panels of refrigerated & insulated truck with WET-IN-WET method and high pressure, vacuum workmanship. 2. The special press machine can meet various requirements of refrigerated & insulated bodies. The dimension of panel can be chosen at the follow range: Length 0-14750mm Width 0-3200mm Thickness 27-135mm 3. The insulated body is formed by applying polyurethane adhesive to the joint area of the all-closed sandwich panels, which ensures the joint reliability and optimum insulation.
BODY CONSTRUCTURE	The whole van body is made up of six panels:Floor plate, Front wall, Two Side wall, Roof and Rear wall portal. Self-supporting body, without cross bars inside and outside skin made of glass fiber reinforced polyester, reinforced with Z-straps. The core of hard foam with best insulation properties. Without metallic carrier elements = without direct heat conductivity. The bodies are watertight. The plastic elements are flame resistant. For galvanized door frame and G.P.R. panel. Due to absence of metal, excellent insulation value is obtained. (No heat conductivity). Thick wall door with 5 fold seal. Door lock with optimum contact pressure.
