3 Axles 40ft Flatbed Truck Semi Trailer

This Flatbed semi trailer is designed for transporting a 40’ ISO container and two 20' ISO contianer and meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications.

Model:
GET.9TJZP.40.3
Brand:
GET INDUSTRY / TRAILERBULL
Code:
GET.9TJZP.40.3

Capacity:	Please select 45T 50T 60T
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

Product Overview

Flat semi trailer is mainly used for transporting non-disassembly goods and large overall goods.This Flatbed semi trailer is designed for transporting a 40’ ISO container and two 20' ISO contianer and meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications.

FEATURES AT A GLANCE

GET9453TJZP_Flatbed Semi Trailer_3 Axles_40ft_Double Tires_Blue Color_GET Vehicles_3

Flat semi trailer is not only mainly used for transporting of ISO containers but also the Super Man for non-disassembly goods and large overall goods.

1. Best structure with lower and Larger Avaliable Loading Platform,

2. Strong & High C apacity,

3. Beautiful appearance With Europe & America Design

4. Easy and convenient and maintenance on working

5. Cheap Maintain Cost

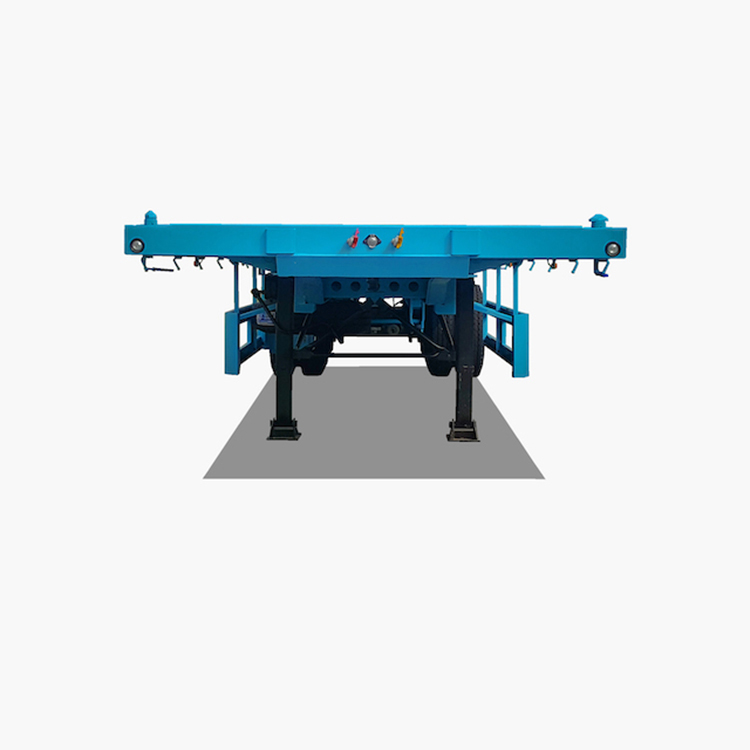

GET9453TJZP_Flatbed Semi Trailer_3 Axles_40ft_Double Tires_Blue Color_GET Vehicles_4

Front Elevation

GET9453TJZP_Flatbed Semi Trailer_3 Axles_40ft_Double Tires_Blue Color_GET Vehicles_6

Under Beam Elevation

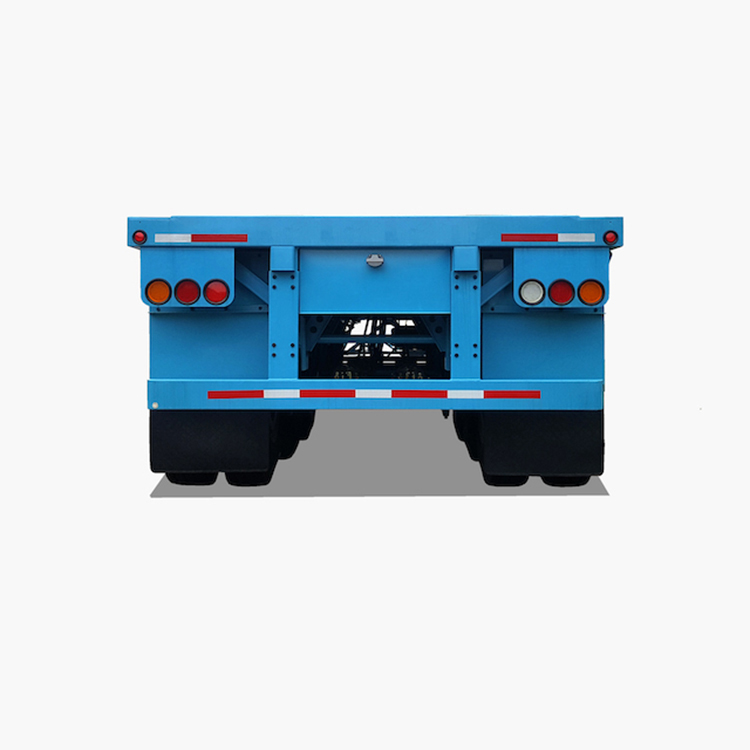

GET9453TJZP_Flatbed Semi Trailer_3 Axles_40ft_Double Tires_Blue Color_GET Vehicles_5

Tail Elevation

PRODUCT SPECIFICATIONS

Tridem Suspension brand new heavy duty 40ft fuwa bpw axle ISO Container Drop-Deck Flatbed Truck Semi Trailer
1. MODEL:			GET.9TJZP.40.3
This Flatbed semi trailer is designed for transporting a 40’ ISO container and two 20' ISO contianer and meets all D.O.T., A.A.R., ANSI, T.O.F.C., FMVSS, SAE and TTMA specifications.
2. GENERAL
Overall Length	41 ft	12,390 mm
Overall Width	8 ft	2,490 mm
Overall Height	5 ft	1,550 mm
Fifth Wheel Height	4 ft	1,200 mm
Kingpin Location	3 ft	1,000 mm	From the rear face of the front bolster
Landing Gear Location	8 ft	2,420 mm	From the kingpin center
Axle Spread	4 ft	1,310 mm
Tandem Location	22 ft	6,840 mm	From Kingpin to Front Suspension Hanger
3. STEEL STRUCTURE AND COMPONENTS
Trailer Main beam	Deep: 450 mm (17.7") Auto-welt Main Beam With High strength low alloy steel with 350 MPa yield hot-rolled I-beam (Q345)
Flatbed Trailer Floor	1/8" (3mm) Thickness ASTM A572 grade 50 Checked Steel Plate Options: 1/5" ( 5mm)
Kingpin Upper coupler	1/4” pick up plate with JOST 2” diameter square type king pin per SAE standard
Flatbed Front Bolster	ASTM A572 grade 50 steel U form channel with 7'' wide x 6'' high x 5/16 thick open section, 3/8'' top plate
Rear Bolster	ASTM A572 grade 50 steel U form channel with 7'' wide x 7'' high x 5/16 thick open section, 3/8'' top plate
Rear Bumper	100x100mm (4” x 4” ) square tube step with taper “H” section vertical member
	Bar is welded to uprights and main beam.
Twist lock	8 Sets	1x40ft Container and 2x20ft Container
4.TRAILER CHASSIS RUNNING GEAR
Landing gear	Jost Or CIMC Brand 28T two speed telescopic manual landing gear
	Crank handle is located on the driver’s side of the chassis.
Trailer Suspension	Mechanical tandem suspension with 3-leaf springs. Options: Air Spring Suspension , Bogie Suspension
Axles	150mm (6") Square axles with 13T/15T/16T/20T capacity, 10 HUB piloted hubs with outboard mounting cast steel drum (ABS Options) Option : Disc Type Manufacturer: FUWA ,Options: BPW,SAF
Wheels	steel disc wheel, 10 holes ISO, ; Option: Aluminum alloy rim
Tires	Tubeless Tires , 11.00R22.5 OPTIONS:12.00R22.5,12.00R20,385/65R22.5,425/65R22.5 , Manufactuter: Double Coin, Triangle, Michelin, Firestone
Brake System	Dual line pneumatic brake, SAE hose and connector, WABCO relay emergency valve, OPTIONS: ABS brake system
	T30/30 spring brake chambers, T30 brake chambers
	3/8” blue air tube for control and 3/8” red for supply, 40L air tanks
Electrical	OPTRONICS 12-volt LED lighting with Phillips mold seal wiring harness, meet DOT and SAE standards. Receptacle::7 way socket SAE standard, China Wiring: Electric cable protected by PVC conduit on main frame
Painting	Electrophoretic spraying, that is, water-based coating, can be dissociated into a water-soluble film-forming material which can form a film in water, and swims to the opposite electrode in a direct current electric field, and precipitates on the surface of the object to form a coating film
MISC	GET standard marking, document holder, conspicuity tape, Steel or black rubber mud flaps
Option	Hubodometer, PSI tire inflation system
