Cheap freight Flatbed Trailer
40ft flatbed semi trailer , container shipment flatbed semi trailer , Cheap freight Flatbed semi trailer

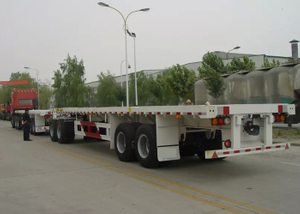

Flatbed Semi-trailer is a most common type of Drop-deck trailers (or Step-frame Trailer) which have a floor that drops down a level once clear of the tractor unit; It have no front axles and coupling with towing vehicle by fifth wheel, this can make semi-trailers have a long continuous cargo area for longer objects (logs, pipe, beams, railway track, containers) than full trailers.
|40ft flatbed semi trailer , container shipment flatbed semi trailer , Cheap freight Flatbed semi trailer|
|This Flatbed semi trailer design is developed to let the long semi trailer get a quick and cheap Liner Shippment .|
Tail design two separate parts joint with bolts, to shorter the full length of trailer to be less than a container. They can be assemblied at the destination like the standard flatbed semi trailer with full beams.
|Flat Bed Semi-Trailer|
Overall Outside Dimension（mm）
|Overall Dimension after cutting rear(600mm)||11780|
|Flat Bed Semi-Trailer GVW（kg）||42000|
|Flat Bed Semi-Trailer vehicle total weight（kg）||7000|
|Flat Bed Semi-Trailer rated payload（kg）||35000|
|Flat Bed Semi-Trailer Wheel base（mm）||6840+1310+1310|
|Flat Bed Semi-Trailer Tread（mm）||Tread at front|
|Tread at rear||1830|
|Front/Rear Overhang (mm）||1800.21|
|Rated payload of Vehicle saddle||14950|
|Flat Bed Semi-Trailer Tires||11R22.5*12|
|Flat Bed Semi-Trailer AXLE||BPW 13T*3|
|ISO container twist locks||8 or 12|
|Options: Capacity 30T - 60T|
|Can design for retractable and cutting rear type to load the semi-trailer into contianer.|
Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts.
Main Beams: 500m deep x 146mm wide x 8mm web welded I-section main beams,Top Flange 14m thick, Bottom Flange 16m thick.
Floor：3mm thick checkered steel plate.
|OEM Parts Configuration:|
King Pin: 3.5” /2” exchangeable king pin, Supplier: JOST.
Container locks: 12 Sets or 8 sets.
Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T.
Suspension:Mechanical suspension with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension
Axles: square axle with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in China..
Rims: 10 Holes ISO. Made in China. Option By the Factory..
Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Triangle Brand , Made in China. Option By the Factory..
Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS. Option By the Factory.
Brake Chamber: 30 type on front axle.30/30 type on other axles,
Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
Side Lights: reflectors (orange);
Rear Lights: direction indicators (orange) /brakes (red)/rear warning (white).
Spare Tire Carrier: Equipped two sets per chassis without spare tire.
Side Guard: Steel.
Tool Box: Equipped one set.
Painting: Color by customer’s requirement.
Marking: By customer’s requirement.
Options: Oil Tanker: 300L carbon steel.
