Product Parameters

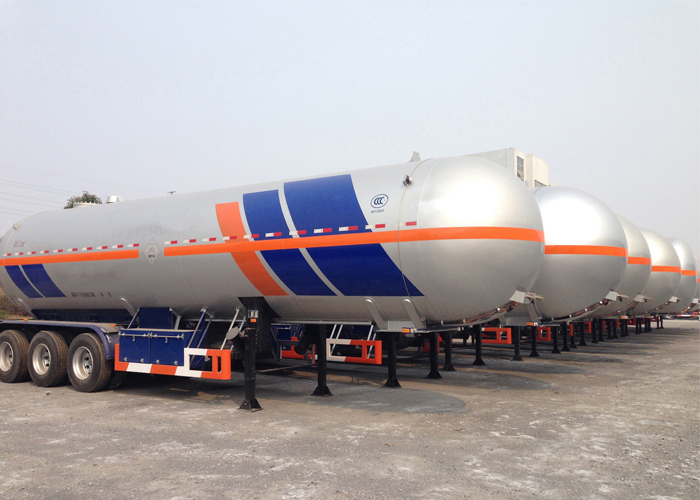

LPG Tanker Semi Trailer,47000L 3 axles Liquefied Petroleum Gas Lorry Tanker Semi Trailer for Liquid Dimethyl Ether and Methylamine
LPG Tank trailer or tanker Trailer (United States usage) or tanker (United Kingdom usage), is a Trailer designed to carry Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), which also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles. As it burns release less CO2 per unit of energy than does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to 26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3), so it become popular as a Clean energy in these years.
| 47000L 3 axles Liquefied Petroleum Gas Lorry Tanker Semi Trailer for Liquid Dimethyl Ether and Methylamine | 9473GYQ | ||
| overall outside dimensio（mm） | Length | 11590 | |
| Width | 2490 | ||
| Height (unload) | 3920 | ||
| Outside dimension of tank body（mm） | Length | 11240 | |
| Dia Φ | 2414 | ||
| Height | |||
| capacity（L） | 47000 | ||
| GVW（kg） | 40000 | ||
| vehicle total weight（kg） | 12740 | ||
| rated payload（kg） | 27260 | ||
| Wheel base（mm） | 5130+1350+1350 | ||
| Tread（mm） | Tread at front | ||
| Tread at rear | 1840/1840/1840 | ||
| Front/Rear Overhang（mm） | /1950 | ||
| Approach/Departure angle（°） | /15 | ||
| Rated payload of Vehicle saddle | 16000 | ||
| Axle | BPW 12T*3 | ||
| Axle Capacity kgs | 8000/8000/8000 | ||
| Tyres | 11R22.5*12 | ||
| Tank Material | Q370R | ||
| Transport Material : | Liquid Dimethyl Ether and Methylamine | ||
| Insulated Cover | |||
| Suspension | Spring Leaf | ||
| Leaf Spring | /8/8/8 | ||
| remark: | |||
| Storage Tank volume:47 m3,Liquid Dimethyl Ether and Methylamine:580 kg/m3, Equip with 6*4 or 6*2 Tractor , WABCO Brake System and ABS, Clerance: 540 OPTIONAL : Spring Air SUSPENSION AND SUPER SINGLE TYRE | |||
| Tank facility | |||
| Design pressure | 1.72MPa (see technical proposals) | ||
| MAWP | 1.72 MPa (see technical proposals) | ||
| Capacity | |||
| Code & Material | Q370R | ||
| Heads | Spherical heads at both ends | ||
| Filling & Discharge System | Control method | Mechanical | |
| Liquid discharge | Single liquid discharge system | Side of the trailer | |
| Valve box | Single valve boxes | Side of the trailer | |
| Vales | Brand | Model | Qty (per Semitrailer) |
| Emergency Valve (Liquid Phase) | Rego | A3213D300 | 2 |
| Emergency Valve(Gas Phase) | Rego | A3212R175 | 1 |
| PRV | Rego | A 8436G | 2 |
| Vent Valve | Rego | TSS3169 | 4 |
| Liquid Adaptor | Rego | 5769K (3”, 3-1/4ACME) | 2 |
| Gas Adaptor | Rego | 5767H (2”, 2-1/4ACME) | 1 |
| Liquid Adapter Cap | Rego | 3194-90 (3-1/4ACME) | 2 |
| Gas Adapter Cap | Rego | 3184-90 (2-1/4ACME) | 1 |
| Pressure Gauge | Rego | A 8400 | 1 |
| Angle Valve | Fisher | J415 | 1 |
| Thermometer | WIKA | 1 | |
| Liquid Level Gauge | Rego | 9094TSM60 | 1 |
| Ball valves (Liquid Phase) | Modentic valve | MD-51FS-300 DN 80 | 2 |
| Ball valves (Gas Phase) | Modentic valve | MD-51FS-300 DN 50 | 1 |
| Max Volume 61,900 Liter Filling Weight 30,000 Kg European ADR Standard /ASME STANDARD Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), also referred to as simply propane or butane, are flammable mixtures of hydrocarbon gases used as fuel in heating appliances, cooking equipment, and vehicles. As it burns release less CO2 per unit of energy than does coal or oil, but a higher calorific value (94 MJ/m3 equivalent to 26.1kWh/m3) than natural gas (methane) (38 MJ/m3 equivalent to 10.6 kWh/m3), so it become popular as a Clean energy in these years. G.E.T Vehicles provides light weight and high-volume Medium-pressure Gas(LPG) tank semi-trailer with 3 axles and more to customers. With 61900-liter max volume, 30,000 filling weight, European ADR standard and ASME STANDARD, it is an optimal transporter for ENERGY logistic industry. Series of products: vehicles for transportation of LPG, propane, propylene, liquid ammonia, etc. Thermal-insulating mode：Super vacuum multi-layer insulation Capacity：5M3-36M3 Working Pressure：0.3MPa-1.6MPa Medium：LOX、LIN、LAr、LCO2、LC2 H 4、LH2 etc Features：For material, we raise products efficiency with use of new material-the high strength stainless steel. We realize the maximum capacity among similar products, lower self-weight of vehicle as well as lower operation cost. | |||
| OEM Parts Configuration: King Pin: 3.5” /2” JOST. Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T. Suspension:Mechanical with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension Axles: square axle with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Triangle Brand , Made in China. Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS. Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185. Side Lights: reflectors (orange); Rear Lights: direction indicators (orange) /brakes (red)/rear warning (white). | |||
| Others: Spare Tire Carrier: Equipped two sets per chassis without spare tire. Side Guard: Steel. Tool Box: Equipped one set. Painting: Color by customer’s requirement. Marking: By customer’s requirement. Options: Oil Tanker: 300L carbon steel. | |||
