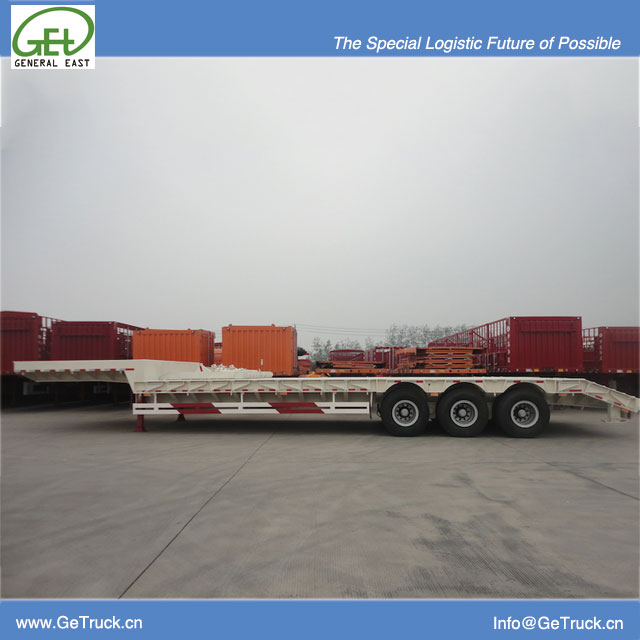

91506TD -15m tridem pendel axles 150T Low Bed Semi-Trailer

Share to:
sharethis sharing button
overall outside dimension（mm）
length 15000
width 3800
height(unload) 3100
Loading Deck dimension（mm）
length 10150
width 3800
GVW（kg） 177800
vehicle total weight（kg） 27800
rated payload（kg） 150000

  • 91506TD

  • GET,CIMC

Availability:

Product Parameters

15m   tridem pendel axles 150T Low Bed Semi-Trailer91506TDZX
overall outside dimension（mm）length15000
width3800
height(unload)3100
Loading Deck dimension（mm）length10150
width3800
GVW（kg）177800
vehicle   total weight（kg）27800
rated   payload（kg）150000
Wheel   base（mm）9200+1320+1320
Tread（mm）Tread   at front
Tread at rear2485
Front/Rear   Overhang（mm）500/2660
Approach/Departure   angle（°）/9
Tyres12.00R20*24
AXLETridem   Pendel Axles system 120T
spring   leaf
Remark
Reference dock size: 10150X3800 optional Loadin   Cramp,the dock height 1320mm.
  Wabco Braker Alearance 320/470 from the ground.


Steel Structure

Material: High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts.

Main Beams: 500m deep x 146mm wide x 8mm web welded I-section main beams,Top Flange 14m thick, Bottom Flange 16m thick.

Floor：3mm thick checkered steel plate.

OEM Parts Configuration

King Pin: 3.5” /2”  exchangeable king pin.Supplier: JOST.

Container locks: 12 Sets or 8 sets.

Landing Gear: 2 speed road side winding with sand shoe, Type: JOST C200T.

Suspension: Mechanical Bogie Suspension with 32T grade.

Options: Bogie Suspension, Air Spring Suspension

Axles:  square axle with 16 tons capacity 2 pieces . Supplier & type: BPW/ FUWA/SAF/L1. Made in China.

Rims: 10 Holes ISO. Made in China. Option By the Factory.

Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5, Triangle Brand , Made in China. Option By the Factory.

Brake System: Dual air brake system, Wabco relay emergency valve.OPTIONS: ABS. Option By the Factory.
Brake Chamber: 30 type on front axle.30/30 type on other axles.
Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.
Side Lights: reflectors (orange);
Rear Lights: direction indicators (orange) /brakes (red)/rear warning (white).

Others

Spare Tire Carrier: Equipped two sets per chassis without spare tire.
Side Guard: Steel.
Tool Box: Equipped one set.
Painting: Color by customer’s requirement.
Marking: By customer’s requirement.
Options: Oil Tanker: 300L carbon steel.
