40ft Heavy Duty FlatBed Container Semi Trailer With 3 Axles Customized Color

40ft Heavy Duty FlatBed Container Semi Trailer With 3 Axles Customized Color

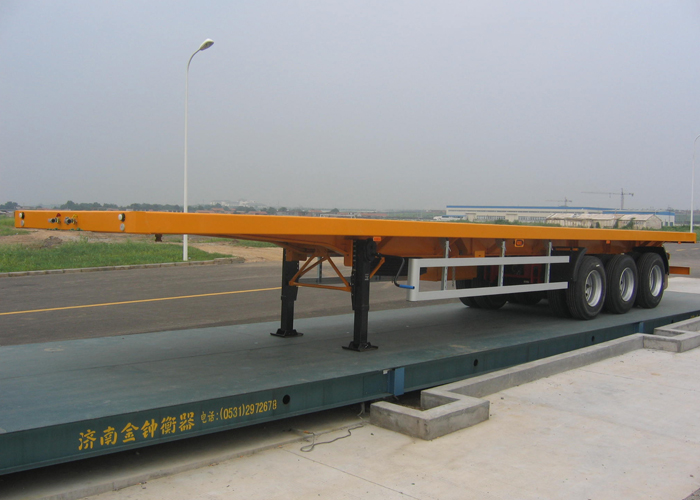

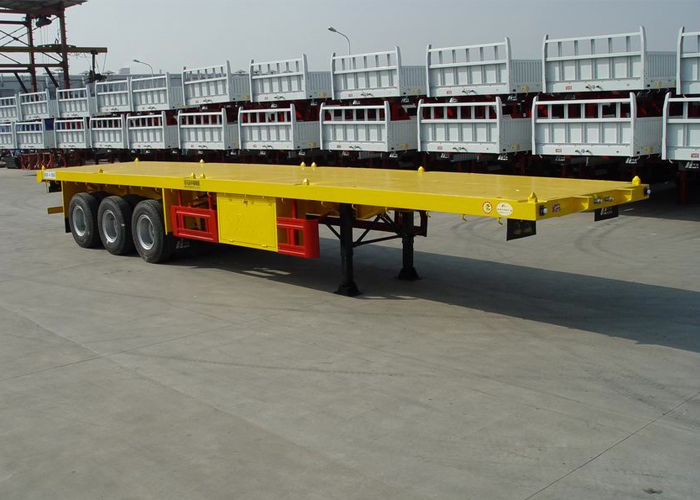

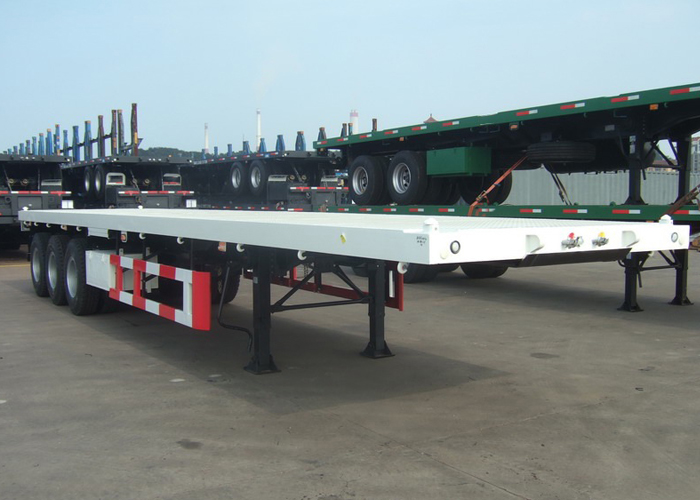

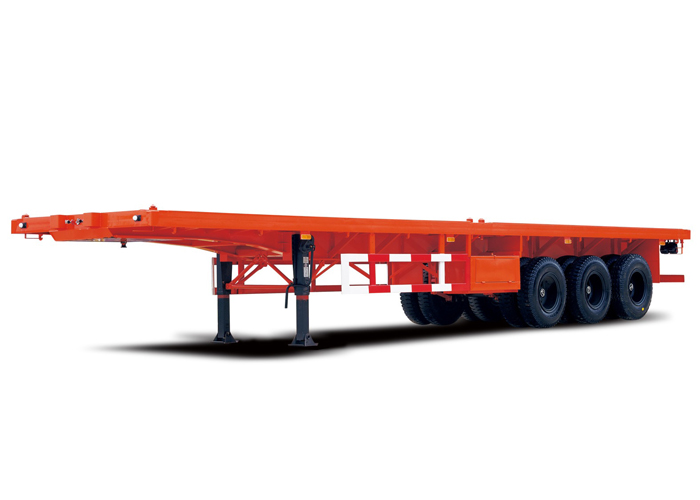

Heavy Duty 40 Foot FlatBed Container Semi Trailer With 3 Axles Customized Color

Model:
9353TJZP
Brand:
GET
Code:
8716

Size:	Please select 40f 40ft
Capacity:	Please select 40T 30T 50T
Color:	Please select Customized customized
Availability:

Quantity:



Inquire Add to Basket

Product Parameters

Product Parameters

Heavy Duty 40 Foot FlatBed Container Semi Trailer With 3 Axles Customized Color

Flatbed Semi-trailer is a most common type of Drop-deck trailers (or Step-frame Trailer) which have a floor that drops down a level once clear of the tractor unit; It have no front axles and coupling with towing vehicle by fifth wheel, this can make semi-trailers have a long continuous cargo area for longer objects (logs, pipe, beams, railway track, containers) than full trailers.

Heavy Duty 40 Foot FlatBed Container Semi Trailer With 3 Axles Customized Color			9353TJZP
Container Flat Bed Semi-Trailer Overall Outside Dimension（mm）		Length	12380
		Width	2490
		Height(Unload)	1590
Flat Bed Semi-Trailer GVW（kg）			42000
Flat Bed Semi-Trailer Vehicle Total Weight（Kg）			7000
Flat Bed Semi-Trailer Rated Payload（Kg）			35000
Flat Bed Semi-Trailer Wheel base（mm）			6840+1310+1310
Tread（mm）	Tread at front
	Tread at rear		1830
Front/Rear OverHang（mm）			1800.21
Approach/Departure angle（°）			19.17
Rated payload of Vehicle saddle			14950
Tires			11R22.5*12
Axles			BPW 13T*3
ISO Contaner twist locks			8 or 12
Remark:
Options: Capacity 30T - 60T
Can design for retractable and cutting rear type to load the semi-trailer into contianer.
Steel Structure: Material:High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and 235 MPa in other fabricated parts. Main Beams: 500m deep x 146mm wide x 8mm web welded I-section main beams,Top Flange 14m thick, Bottom Flange 16m thick. Floor：3mm thick checkered steel plate.
OEM Parts Configuration: King Pin: 3.5” /2” exchangeable king pin, Supplier: JOST. Container locks: 12 Sets or 8 sets. Landing Gear: 2 speed road side winding with sand shoe,Type: JOST C200T. Suspension:Mechanical suspension with 11 / 10/ 8/7 leaf spring (W100mm x T12mm per leaf). options: Bogie Suspension, Air Spring Suspension Axles: square axle with 12 tons capacity. Supplier & type: BPW/ FUWA/SAF/L1. Made in China.. Rims: 10 Holes ISO. Made in China. Option By the Factory.. Tires: 11R22.5 OPTIONS: 12R22.5, 315/80R22.5,385/65R22.5 , Triangle Brand , Made in China. Option By the Factory.. Brake System: Dual air brake system, Wabco relay emergency valve, OPTIONS: ABS. Option By the Factory. Brake Chamber: 30 type on front axle.30/30 type on other axles, Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185. Side Lights: reflectors (orange); Rear Lights: direction indicators (orange) /brakes (red)/rear warning (white).
Others: Spare Tire Carrier: Equipped two sets per chassis without spare tire. Side Guard: Steel. Tool Box: Equipped one set. Painting: Color by customer’s requirement. Marking: By customer’s requirement. Options: Oil Tanker: 300L carbon steel.
